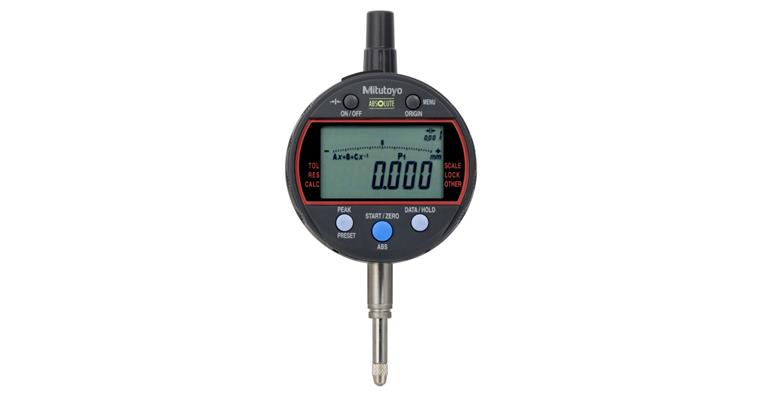

Digitale Messuhr ID-C 12,7mm 0,001 mm Berechnungsfunktion flache Rückwand IP42

Digitale Messuhr ID-C 12,7mm 0,001 mm Berechnungsfunktion flache Rückwand IP42

Digitale Messuhr ID-C 12,7mm 0,001 mm Berechnungsfunktion flache Rückwand IP42
Item no: 1033018 352

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • For dynamic and static measurements
  • ABSOLUTE system for setting the starting position once until the next battery change
  • Large digital/analogue display for easy reading of values
  • Calculation function for a number of applications (e.g.: outer diameter measurement), coefficients A, B and C can be freely defined
  • Display can be rotated 330° for flexible display settings
  • Measuring frequency (MAX/MIN/RANGE), standard mode: 10 times/sec, quick mode: 50 times/sec (max. measuring pin speed 50 µm/s for peak measurement)
  • Functions: DATA/HOLD, PRESET 3x, Digimatic data output, ON/OFF, switchable analogue measuring range, function lock, GO/±NG evaluation, quick measuring mode, ABS/INC (INC ZERO), selectable resolution, calculation function (with formula), switchable counting direction
  • zusätzliche Funktionen: wählbare Auflösung

Delivery
1x dial gauge
1x battery
1x manufacturer's test certificate


Brand: MITUTOYO
Length measuring range: 12,7 mm
Type: erweiterte Berechnungsfunktion
Digit increment: 0,001 mm
Error limit: 0,003 mm
Data transmission type: Cable | Bluetooth | Wireless
Repeat accuracy: 0,002 mm
IP protection class: IP 42
Dynamic measurement: Yes
Shank diameter: 8 mm
Rotating housing: Yes
Digit height: 8 mm
Calibration Group: CD
Other standard: Company standard
Outer diameter: 59 mm

Manufacturer part no.: 543-340B-10

EAN no.: 4946368863146

Product Datasheet
