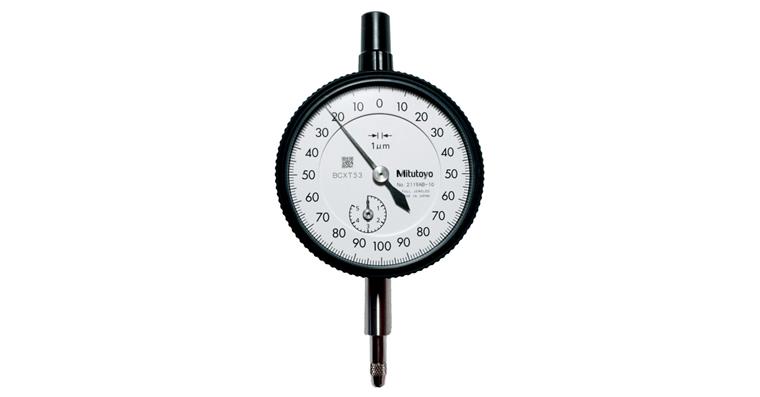

Messuhr edelsteingelagert Ablesung 0,001mm Messbereich 5 mm

Messuhr edelsteingelagert Ablesung 0,001mm Messbereich 5 mm

Messuhr edelsteingelagert Ablesung 0,001mm Messbereich 5 mm
Item no: 1033018 104

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • Carbide-tipped
  • Thread: M2.5 x 0.45 mm
  • The locking screw and stroke lever (optional) can be installed on either the left or right
  • The design prevents the ingress of liquids due to the lack of through-bores, the secure seal between the outer ring and glass and the O-ring
  • Double-sided scale
  • Accuracy in accordance with factory standard

Delivery
Supplied with factory test certificate

Notes
For special probes, see art. no. 1033114.

Brand: MITUTOYO
Length measuring range: 5 mm
Digit increment: 0,001 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 57 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: No
Rotating housing: Yes
Measurement force: 1,5 N
Calibration Group: C
Scale value: 0,001 mm

Manufacturer part no.: 2119AB-10

EAN no.: 4946368842103

Product Datasheet
