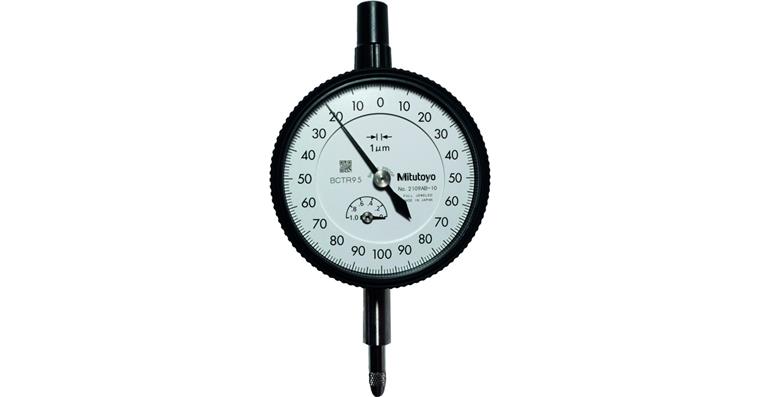

Dial gauge 0.001 mm measuring range 1 mm, jewelled bearing

Dial gauge 0.001 mm measuring range 1 mm, jewelled bearing

Dial gauge 0.001 mm measuring range 1 mm, jewelled bearing
Item no: 1033018 102

Online price:

Still in stock: 2

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Carbide-tipped
  • Thread: M 2.5 x 0.45 mm
  • The locking screw and stroke lever (optional) can be installed either on the right or on the left
  • The design prevents the ingress of liquids thanks to the lack of through-bores, a secure seal between the outer ring and glass and the inclusion of an o-ring
  • Continuous scale
  • Accuracy according to factory standard

Delivery
Supplied with a factory test certificate

Notes
For special probes, see art. no. 1033114.

Brand: MITUTOYO
Length measuring range: 1 mm
Digit increment: 0,001 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 57 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: Yes
Rotating housing: Yes
Measurement force: 1,5 N
Calibration Group: C
Scale value: 0,001 mm

Manufacturer part no.: 2109AB-10

EAN no.: 4946368842028

Product Datasheet
