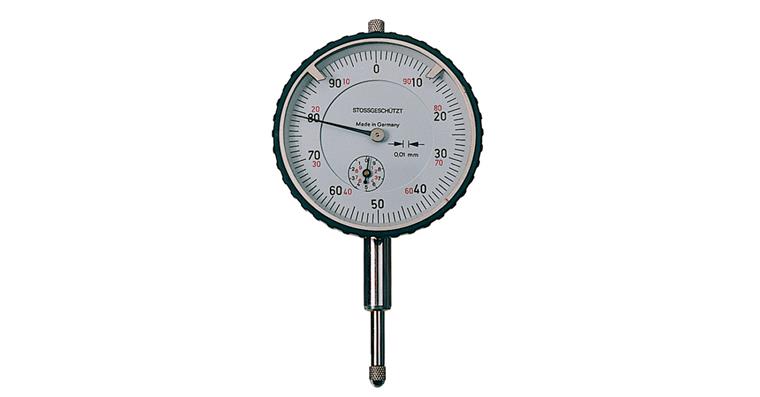

Dial gauge shock-resistant reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm

Dial gauge shock-resistant reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm

Dial gauge shock-resistant reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm
Item no: 1033011 101

Online price:

Available for immediate delivery

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 adjustable tolerance marks
  • 2x pointers (small pointer for absolute mm display)
  • Dial with black advancing and red returning numbers
  • Nickel-plated metal housing
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Replaceable indicator contact points
  • Clamping shank and lapped measuring pin made of stainless steel

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 58 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: Yes
Material of outer ring: Plastic
Rotating housing: Yes
Shaft length: 17,5 mm
DIN: 878
Scale value: 0,01 mm

EAN no.: 4024496080847

Product Datasheet
