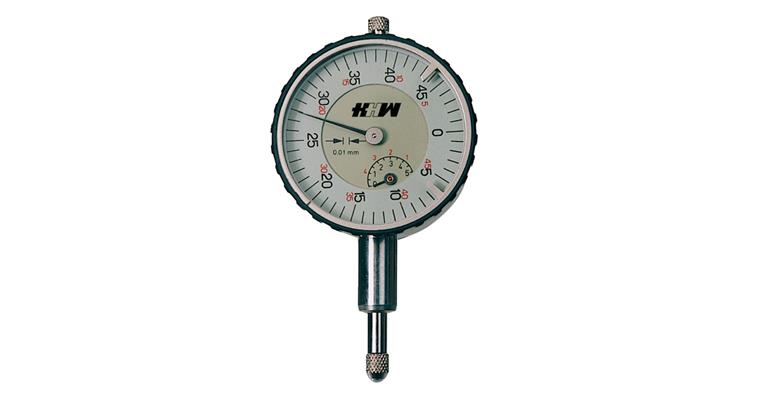

Small dial gauge reading 0.01 mm DIN 878 measuring range 5 mm dia. 40 mm

Small dial gauge reading 0.01 mm DIN 878 measuring range 5 mm dia. 40 mm

Small dial gauge reading 0.01 mm DIN 878 measuring range 5 mm dia. 40 mm
Item no: 1033004 101

Online price:

Still in stock: 5

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Housing made of hot-pressed brass
  • 2x pointers (small pointer for absolute mm display)
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2x adjustable tolerance marks
  • Dial with black advancing and red returning numbers
  • Replaceable indicator contact points
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Measuring pin and clamping shank made of stainless steel

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 5 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: Yes
Shaft length: 12,5 mm
DIN: 878
Scale value: 0,01 mm

EAN no.: 4024496080786

Product Datasheet
