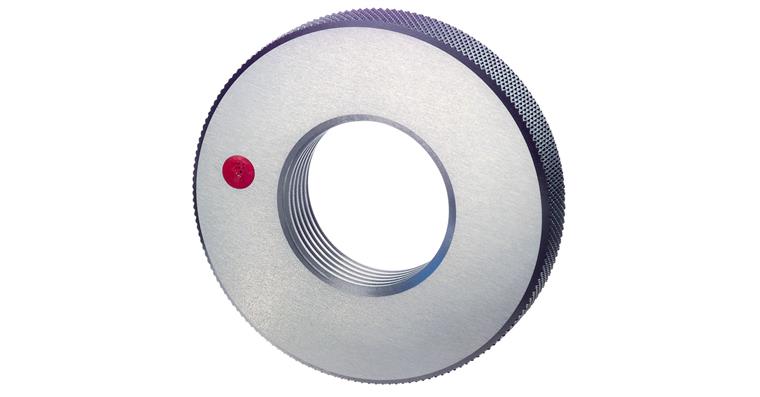

Thread no-go ring gauge ISO fine thread DIN 2285 MF 90x3 6g

Thread no-go ring gauge ISO fine thread DIN 2285 MF 90x3 6g

Thread no-go ring gauge ISO fine thread DIN 2285 MF 90x3 6g
Item no: 1032434 190

Online price:

Available in 8-10 working days.

Application
For testing the flank and core diameter of male threads.

Execution
  • Thread no-go ring gauge
  • Right-hand thread
  • Optimum surface quality and high hardness due to fine grinding and use of gauge steel

Notes
Further nominal diameters, pitches, tolerance classes, left-hand thread or other thread types, thread limit gauges and thread limiting roller gauges for fine metric ISO threads are deliverable on request, as well as the corresponding thread counter-plug gauges (minimum and wear test mandrels) for testing the threaded ring gauges.

Brand: JBO
Calibration Group: AB
Thread type: Metric fine thread
Thread type x nominal diameter x pitch: MF90 x 3.00
Pitch: 3,00 mm
Tolerance class: 6g
Material: Gauge steel
DIN: 2299 | 13

Manufacturer part no.: 501040

EAN no.: 4046122213146

Product Datasheet
Versions
