Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 12 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 12 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 12 6H
Item no: 1032413 220

Online price:

Still in stock: 4

Application
For testing the flank diameter of female threads and compliance with minimum dimensions of the external diameter

Execution
  • Hardened and finely ground
  • Right-hand thread
  • Tolerance 6H (M1-M1.4 tolerance 5H)
  • Go side with full thread profile (must screw into the test specimen without the use of force)
  • Scrap side with shortened thread flanks and only a few turns (must not screw in)
  • Best gauge steel

Notes
Special gauges deliverable in all dimensions, tolerances and set combinations on request.

Brand: JBO
Calibration Group: AA
Thread type: Metric thread
Thread type x nominal diameter x pitch: M12 x 1.75
Pitch: 1,75 mm
Tolerance class: 6H
Material: Gauge steel
DIN: 13 | 2280

Manufacturer part no.: 511689

EAN no.: 4046122111381

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 20 6H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 24 6H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 22 6H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 14 6H
  •
    Thread no-go ring gauge ISO fine thread DIN 2285 MF 6x0.5 6g
  •
    ATORN SCLC offset boring bar, steel, positive, right, A 1012 K SCLC R/L 06
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 30 6H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 1.6 6H
  •

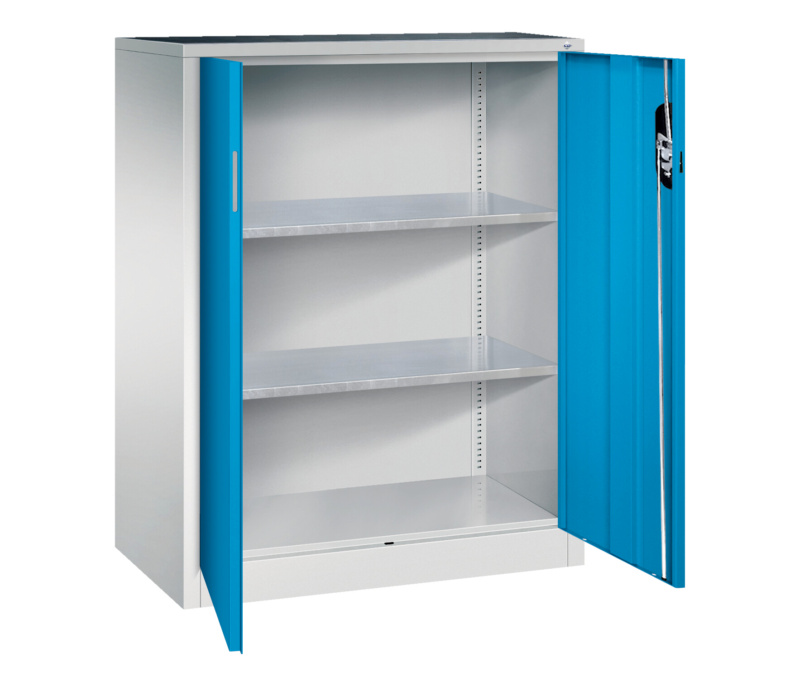

    Hinged door tool cabinet HxWxD 1200x930x500 mm 2 shelves RAL 5012
  •
