Measuring force test device for micrometers MR: 0-25mm 3 extns. 25/50/75 mm

Measuring force test device for micrometers MR: 0-25mm 3 extns. 25/50/75 mm

Measuring force test device for micrometers MR: 0-25mm 3 extns. 25/50/75 mm
Item no: 1032055 101

Online price:

Available in 13-15 working days.

Application
For simple testing of the measuring force between the measuring surfaces (up to dia. 8 mm) on micrometers. The measuring force must be between 5 and 10 N in accordance with DIN 863-1.

Execution

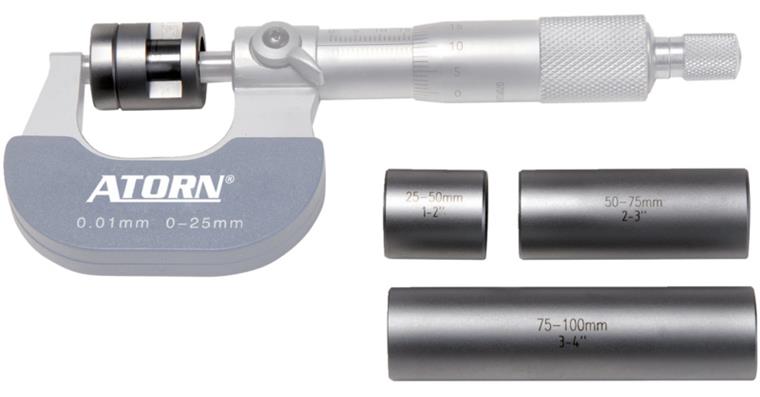

  • Set consisting of:
  • Force measuring cell for micrometers from measuring range 0-25 mm
  • Three screw-on extensions (25/50/75 mm) for micrometers up to measuring range 100 mm

Delivery
In case

Notes
Calibration on request.

Brand: ---
Min./max. force of measuring range: 5-10 N
Min./max. length measuring range: 0-100 mm
Max. force measuring range: 10 N
Min. force measuring range: 5 N
Composition of set: 1 x force measuring cell from measuring range 0-25 mm
3 extensions (25/50/75 mm) for micrometers up to measuring range 100 mm

EAN no.: 4024496077045

Product Datasheet
Keywords: Bügelmessschraube , Bügelmeßschraube , Meßschraube , Messschraube , Mikrometer , Mikrometerschraube
