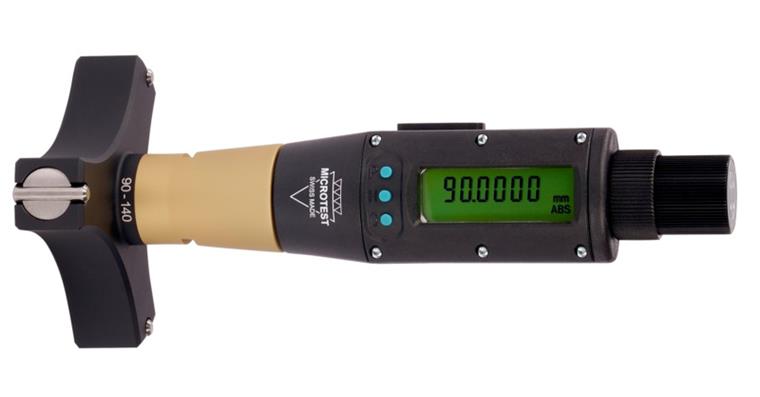

Digital-3Punkt-Innenmessschraube Messbereich 90-140mm gold

Digital-3Punkt-Innenmessschraube Messbereich 90-140mm gold

Digital-3Punkt-Innenmessschraube Messbereich 90-140mm gold
Item no: 1031907 204

Online price:

Available in 8-10 working days.

Application
For high-precision measurement of through-bores and blind holes, even with large measuring depths.

Execution
  • Housing made of fibreglass-reinforced plastic
  • Measuring shaft with two ball bearings
  • Optional data transfer
  • Maintenance-free thanks to Microtest system
  • Automatic self-centring
  • Features: mm/inch, Hold, Preset, INC, ABS

Advantage
  • Very wide measuring ranges
  • Very large depth extensions (up to 10 metres) are possible

Delivery
1x case
1x calibration certificate


Brand: MICROTEST
Min./max. length measuring range: 90-140 mm
Digit increment: 0,0001 mm
Measuring depth: 140 mm
Error limit: 0,0015 mm
Measuring spindle increments: 1 mm
IP protection class: IP 52
Calibration Group: On demand
DIN: 863

Manufacturer part no.: IE5004-G

Product Datasheet
