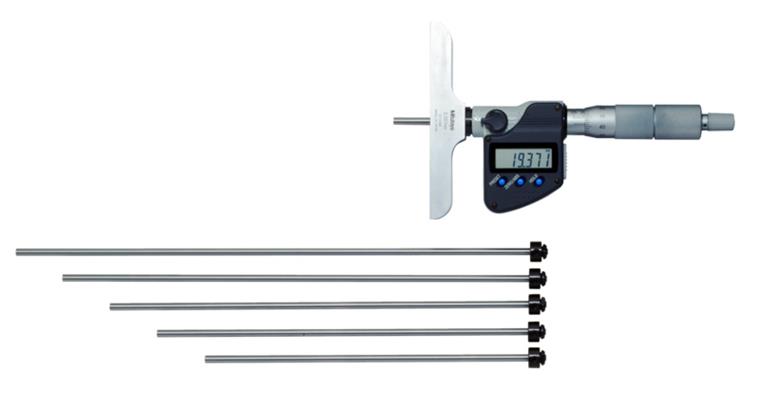

Digitale Tiefenmessschraube 0-300mm 101,6x16mm 12 Verlängerungen u. Datenausgang

Digitale Tiefenmessschraube 0-300mm 101,6x16mm 12 Verlängerungen u. Datenausgang

Digitale Tiefenmessschraube 0-300mm 101,6x16mm 12 Verlängerungen u. Datenausgang
Item no: 1031691 201

Online price:

Available in 11-13 working days.

Application
For measuring bore depths and shoulders.

Execution
  • 4 mm diameter interchangeable rod inserts, with lapped measuring surface, offers a wide measuring range in 25 mm increments
  • A ratchet tool ensures constant measuring force
  • Hardened, precision-ground and micro-lapped measuring faces
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm
  • Funktionen: DATA (Ausgabe mit Kabel) / HOLD (Anzeigewert), Tastensperre, Auto. Abschaltung nach 20 min. ohne Funktion, 2 x PRESET, Alarm niedrige Spannung, Datenausgang, ABS / INC (INC ZERO)
  • Functions: DATA (output with cable)/HOLD (display value), key lock, automatic switch-off after 20 minutes of inactivity, 2x PRESET, low voltage alarm, data output, ABS/INC (INC ZERO)

Delivery
1x box
1x adjustment wrench
1x battery


Brand: MITUTOYO
Min./max. length measuring range: 0-300 mm
Digit increment: 0,001 mm
Bridge length: 101,6 mm
Bridge width: 16 mm
Measuring surface diameter: 4 mm
Error limit: 0,006 mm
Data transmission type: Cable | Wireless | Bluetooth
Interface: Digimatic | USB 2.0 type A | Integrated Wireless | Bluetooth
Measuring spindle increments: 0,5 mm
Min./max. measurement force: 5-10 N
Spindle clamping: Yes
Number of measurement needles: 12 PCS
Other standard: Company standard

Manufacturer part no.: 329-251-30

EAN no.: 4946368695853
