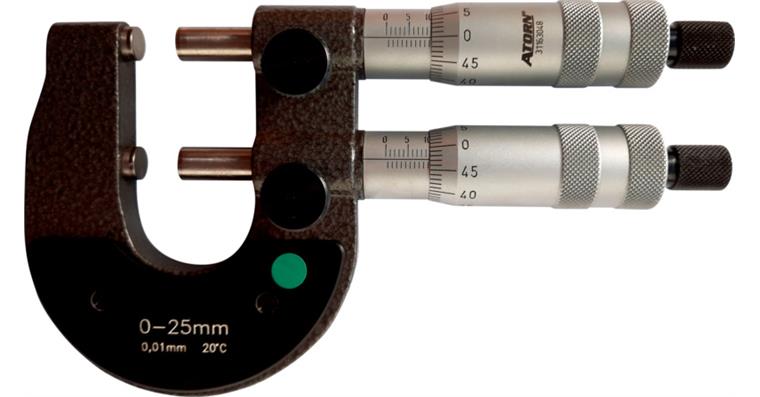

ATORN snap gauge micrometer, measuring range 0-25 mm

ATORN snap gauge micrometer, measuring range 0-25 mm

ATORN snap gauge micrometer, measuring range 0-25 mm
Item no: 1031621 101

Online price:

Will be ordered for you

Application
The snap gauge micrometer can be used to cost-effectively replace many individual,
fixed snap gauges
with fits up to IT7. An even higher accuracy is obtained when
setting the dimensions with parallel gauge blocks.

Execution
  • Anti-glare, matt chrome-plated finish on reading elements
  • Carbide measuring surfaces
  • Friction coupling for consistently repeatable measuring force of 5-10 N
  • With spindle clamp
  • Handle prevents transfer of heat from the hands
  • Two independent measuring spindles mounted on top of each other

Advantage
  • Extremely stable frame. Better bending than required by DIN 863.
  • Very high-contrast and durable scale, sharply recessed and black
  • Replaces multiple snap gauges within the measurement range

Delivery
Supplied in a high-quality wooden case


Brand: ATORN
Display: Nonius
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring arrangement: Flat
Material of measuring bolt: Carbide
Measuring surface diameter: 8 mm
Measuring spindle increments: 0,5 mm
Spindle clamping: Yes
Error limit: 2 µm
Min./max. measurement force: 5-10 N
Calibration Group: D
DIN: 863

ATORN-No.: 31163048

EAN no.: 4066107114183
