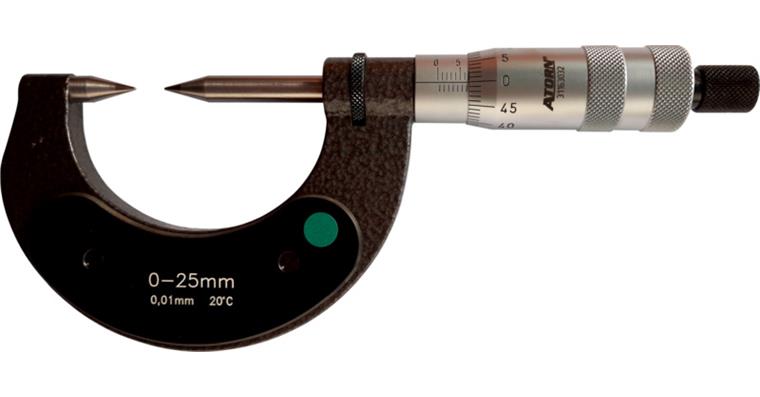

ATORN micrometer with 30 degree tip, measuring range 0-25 mm

ATORN micrometer with 30 degree tip, measuring range 0-25 mm

ATORN micrometer with 30 degree tip, measuring range 0-25 mm
Item no: 1031616 101

Online price:

Will be ordered for you

Application
For measurement in small recesses, hard-to-reach places and on very small surfaces.

Execution
  • Anti-glare, matt chrome-plated finish on reading elements
  • Carbide measuring surfaces
  • Friction coupling for consistently repeatable measuring force of 5-10 N
  • With spindle clamp
  • Handle prevents transfer of heat from the hands

Advantage
  • Extremely stable frame. Better bending than required by DIN 863.
  • Very high-contrast and durable scale, sharply recessed and black

Delivery
Supplied in a high-quality wooden case


Brand: ATORN
Display: Nonius
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring arrangement: Cone tip (SR0.3)
Material of measuring bolt: Carbide
Measuring surface diameter: 6,5 mm
Measuring spindle increments: 0,5 mm
Spindle clamping: Yes
Error limit: 3 µm
Min./max. measurement force: 5-10 N
Calibration Group: D
DIN: 863

ATORN-No.: 31163032

EAN no.: 4066107114022
