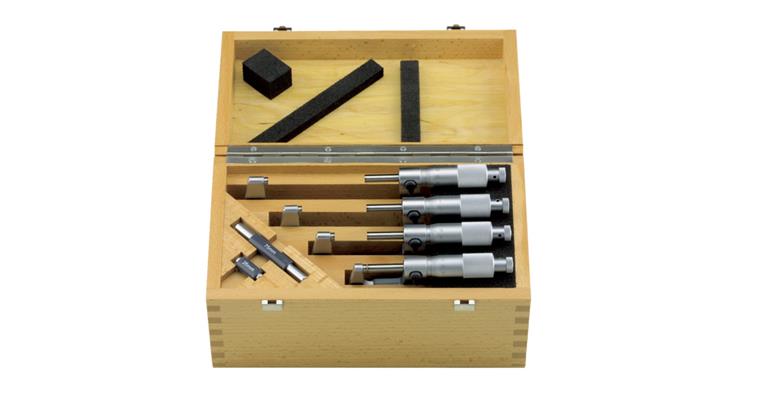

Precision micrometer set Micromar 40 SA MR 0-100 mm reading 0.01 mm

Precision micrometer set Micromar 40 SA MR 0-100 mm reading 0.01 mm

Precision micrometer set Micromar 40 SA MR 0-100 mm reading 0.01 mm
Item no: 1031514 201

Online price:

Available in 6-8 working days.

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Brushed chromium-plated control and display elements
  • Hard-lacquered steel frame
  • Measuring spindle and anvil made of hardened steel, carbide-tipped
  • Thermal insulation panels
  • Quick drive with integrated coupling
  • Locking device

Delivery
1x outside micrometer set
1x pouch
Setting gauges
Operating instructions


Brand: MAHR
Min./max. length measuring range: 0-100 mm
Digit increment: 0,01 mm
Number of bracket measuring screws: 4 PCS
Composition of set: 0-25 mm | 25-50 mm | 50-75 mm | 75-100 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Spindle clamping: Yes
Reading Length Metrology: 0,01 mm
DIN: 863
Number of setting dimensions: 2 PCS
Calibration Group: D | E

Manufacturer part no.: 4134050

EAN no.: 4059192003722

Product Datasheet
