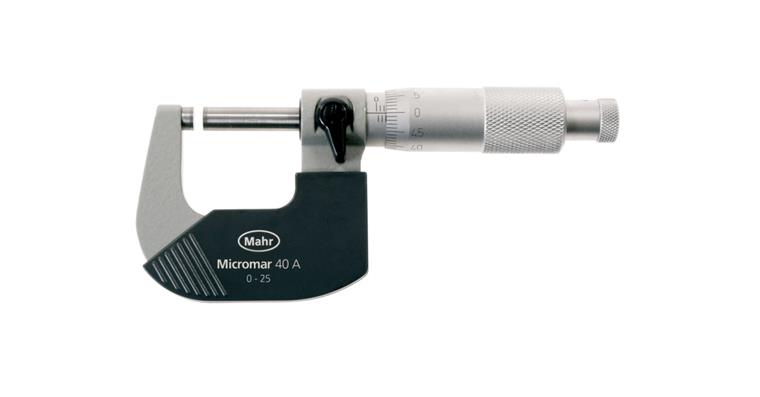

Precision micrometer Micromar 40 A MR 0-25 mm reading 0.01 mm

Precision micrometer Micromar 40 A MR 0-25 mm reading 0.01 mm

Precision micrometer Micromar 40 A MR 0-25 mm reading 0.01 mm
Item no: 1031514 101

Online price:

Still in stock: 8

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Brushed chromium-plated control and display elements
  • Hard-lacquered steel frame
  • Measuring spindle and anvil made of hardened steel, carbide-tipped
  • Thermal insulation panels
  • Quick drive with integrated coupling
  • Locking device

Delivery
1x case
1x setting gauge (from measuring range 25-50 mm)
1x operating instructions


Brand: MAHR
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Error limit: 0,004 mm
DIN: 863
Spindle clamping: Yes
Bracket depth: 25,5 mm
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 4134000

EAN no.: 4059192003647

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

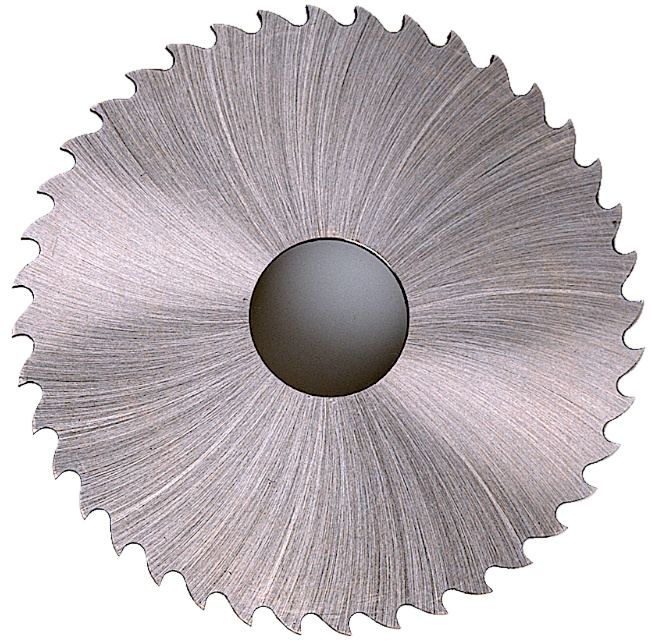

  • Metal circular saw blade DIN 1838 B coarse-toothed 48 teeth HSS 80 x 1.2 mm
  •
