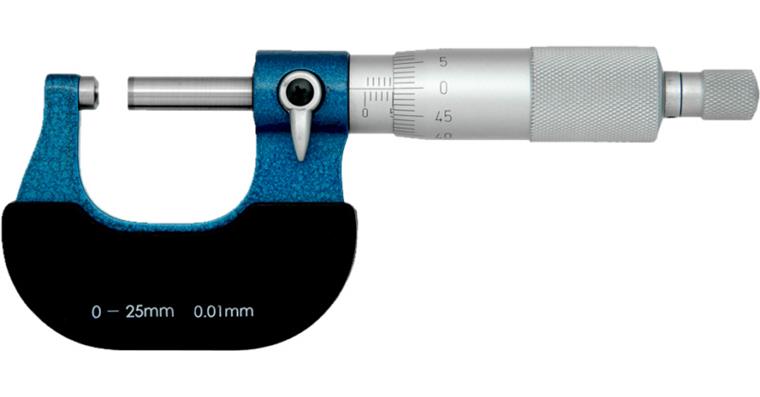

Micrometer with setting gauge carbide 0.5 pitch MR 0-25 mm

Micrometer with setting gauge carbide 0.5 pitch MR 0-25 mm

Micrometer with setting gauge carbide 0.5 pitch MR 0-25 mm
Item no: 1031502 101

Online price:

Available for immediate delivery

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Measuring surfaces carbide-tipped and lapped
  • Brushed chromium-plated reading parts
  • Spindle fully hardened and ground
  • With locking lever, adjusting nut and ratchet tool
  • Insulation to protect against heat from hands
  • Measuring spindle dia. 6.5 mm
  • Measuring drum dia. 18 mm
  • Pas de l'axe de 0,5 mm
  • Diamètre de l'axe de mesure de 6,5 mm
  • Diamètre du tambour de mesure de 18 mm

Delivery
1x storage box
1x wrench
1x setting gauge


Brand: LIZZARD
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
DIN: 863
Spindle clamping: Yes
Number of setting dimensions: 0 PCS
Calibration Group: D

EAN no.: 4024496071500

Product Datasheet
