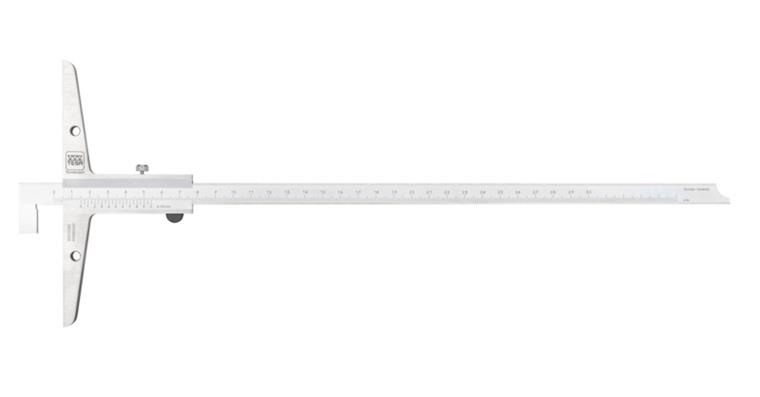

Precision depth callipers 0-200 mm, w. angled depth gauge rod 0.02 mm

Precision depth callipers 0-200 mm, w. angled depth gauge rod 0.02 mm

Precision depth callipers 0-200 mm, w. angled depth gauge rod 0.02 mm
Item no: 1031307 302

Online price:

Available in 6-8 working days.

Application
For measuring e.g. hole depths, offsets on workpieces etc.

Execution
  • Vernier scale and scale with brushed chrome-plated finish for glare-free reading
  • Locking screw at the top
  • Hardened measuring surfaces
  • Hardened stainless steel slide and beam
  • Length x width of the angle offset: 12 x 5 mm for bores from dia. 22 mm

Advantage
Main scale intervals slightly recessed to prevent wear


Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-200 mm
Scale value: 0,02 mm
Bridge width: 8 mm
Bridge length: 100 mm
ISO: 13385-2
Type of locating: With locking screw
Calibration Group: B

Manufacturer part no.: 00510277

EAN no.: 7630041148107

Product Datasheet
