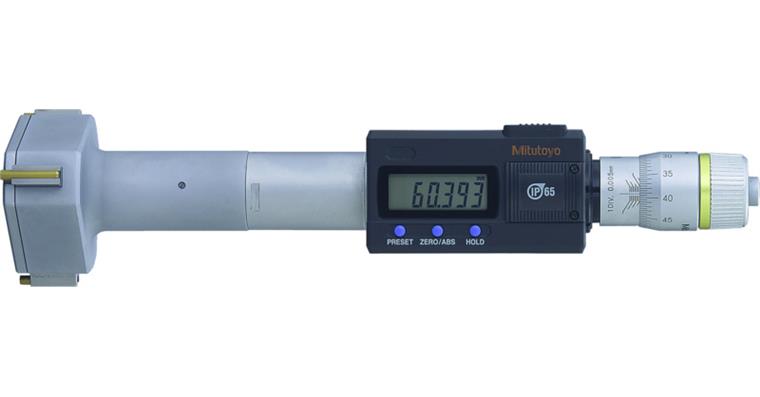

Internal micrometer 3 point digital 62-75 mm IP65 Ti alloy

Internal micrometer 3 point digital 62-75 mm IP65 Ti alloy

Internal micrometer 3 point digital 62-75 mm IP65 Ti alloy
Item no: 1031128 311

Online price:

Available in 11-13 working days.

Application
For measuring through-bores and short pilots in series production.

Execution
  • Titanium-coated measuring surfaces for excellent durability and impact resistance
  • Measurement values can easily be read from the large LCD display
  • Titanium-coated carbide measuring surfaces (6-12 mm), titanium-coated hardened steel (12-300 mm)
  • Funktionen: ABS / INC (INC ZERO), Auto. Abschaltung nach 20 min. ohne Funktion, Alarm niedrige Spannung, Funktionssperre, HOLD, 2 x PRESET, Datenausgang
  • Digimatic
  • Fonction ABS
  • Fonction HOLD
  • Arrêt automatique au bout de 20 minutes de non-utilisation
  • Functions: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, low voltage alarm, function lock, HOLD, 2x PRESET, data output

Advantage
Excellent resistance to water and dust ingress (IP 65 degree of protection), meaning that you can use this product in machining situations in the presence of coolants or cutting oils

Delivery
1x box
1x adjustment wrench
1x SR-44 battery
1x factory test certificate

Notes
Without setting ring or extensions
For connecting cables, see art. no. 1035200 603, 604, 609.
For replacement batteries, see art. no. 1039900 102.

Brand: MITUTOYO
Min./max. length measuring range: 62-75 mm
Digit increment: 0,001 mm
Measuring depth: 105 mm
Error limit: 0,003 mm
Measuring spindle increments: 0,5 mm
Data transmission type: Cable | Wireless
Interface: Integrated Wireless | Digimatic | USB 2.0 type A
IP protection class: IP 65
Digit height: 7,5 mm
Calibration Group: I

Manufacturer part no.: 468-171

EAN no.: 4946368563039

Product Datasheet
