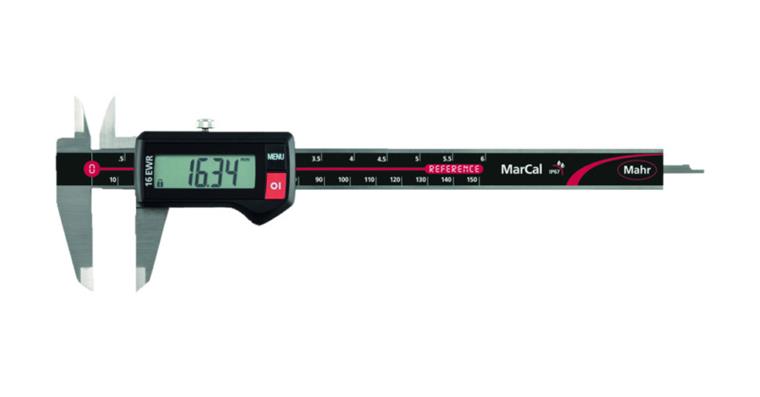

MarCal 16 EWR IP67 digital pocket vernier callipers 0-150 mm without data output

MarCal 16 EWR IP67 digital pocket vernier callipers 0-150 mm without data output

MarCal 16 EWR IP67 digital pocket vernier callipers 0-150 mm without data output
Item no: 1031040 102

Online price:

Available for immediate delivery

Application
For measuring external, internal, step and depth dimensions.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring edges for internal measurement
  • Slide and rail hardened, rust-free
  • Stepped measuring device
  • Dirt scraper in the slide
  • Functions: ON/OFF, AUTO ON/OFF, HOLD (measured value storage), RESET (sets the display to zero), PRESET (measurement presetting), counting direction reversal, mm/inch, LOCK function (key lock)

Advantage
  • Ready to measure immediately thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance to dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For test gauge, see art. no. 1032060 201.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 40 mm
Data transmission type: No
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-6 in
IP protection class: IP 67
DIN: 862
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 16 mm
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 4103302

EAN no.: 4059192002442

Product Datasheet
