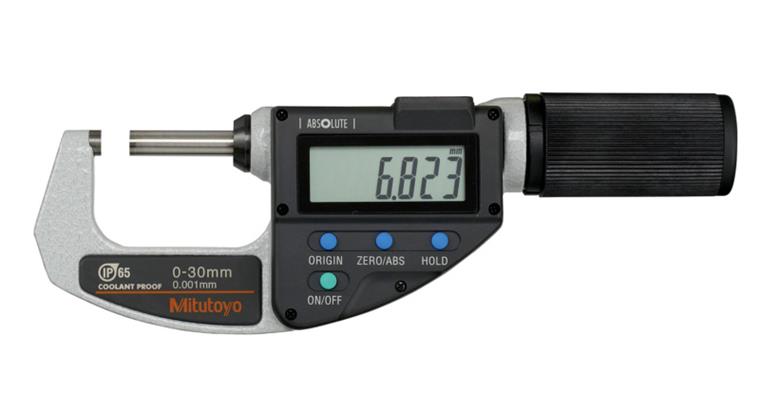

Digitale Bügelmessschraube QuickMike Messbereich 0-30 mm

Digitale Bügelmessschraube QuickMike Messbereich 0-30 mm

1031016501 Digitale Bügelmessschraube QuickMike Messbereich 0-30 mm
Item no: 1031016 501

Online price:

Still in stock: 1

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • The ABSOLUTE linear scale prevents errors at a faster spindle feed
  • Larger measuring range of 30 mm compared to 25 mm for standard micrometers
  • Excellent resistance to water and dust (IP65) enables use in machining situations that involve cooling lubricants
  • Non-rotating spindle
  • Functions: ABS/INC (INC ZERO), function block, Hold

Advantage
10 mm spindle feed per revolution, which means movement that is 20 times faster compared to standard micrometers

Delivery
1x box
1x setting gauge (from 25 mm)
1x battery (type SR-44)


Brand: MITUTOYO
Min./max. length measuring range: 0-30 mm
Digit increment: 0,001 mm
Measuring spindle increments: 10 mm
Measuring surface diameter: 6,35 mm
Data transmission type: Cable | Wireless
Error limit: 0,002 mm
IP protection class: IP 65
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Other standard: Company standard
Spindle clamping: No
Digit height: 10 mm
Bracket depth: 25 mm
Min./max. measurement force: 5-12 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 293-666-20

EAN no.: 4946368736693

Product Datasheet
