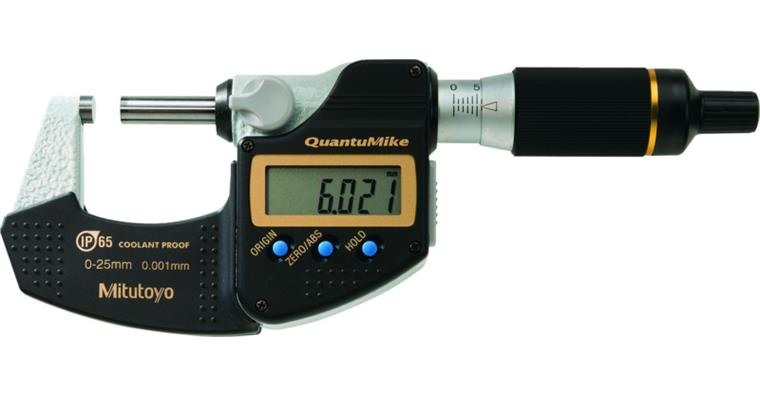

Digital micrometer QuantuMike measuring range 0-25 mm Digimatic

Digital micrometer QuantuMike measuring range 0-25 mm Digimatic

1031016401 Digital micrometer QuantuMike measuring range 0-25 mm Digimatic
Item no: 1031016 401

Online price:

sold out

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • Excellent accuracy
  • Ratchet thimble makes one-handed operation easier
  • Excellent resistance to water and dust (IP65) enables use in machining situations that involve cooling lubricants
  • Semi-gloss chrome-plated scale drum and sleeve, dia. 19.3 mm
  • Origine (préréglage de mesure)
  • avec barillet à cliquet
  • Digimatic
  • Functions: ABS/INC (INC ZERO), automatic power off after 20 mins of inactivity, Hold

Advantage
  • Larger spindle pitch of 2 mm/r for faster measurement
  • Extraordinarily high battery life of 2.4 years

Delivery
1x box
1x wrench
1x battery (type SR-44)
1x setting gauge (from 25 mm)
1x factory test certificate (up to 50 mm measuring range)

Notes
For setting gauges, see art. no. 1031579.
For connecting cable, see art. no. 1035200 603, 604, 609.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-25 mm
Digit increment: 0,001 mm
Measuring spindle increments: 2 mm
Measuring surface diameter: 6,3 mm
Data transmission type: Bluetooth | Wireless | Cable
Error limit: 0,001 mm
IP protection class: IP 65
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Other standard: Company standard
Spindle clamping: Yes
Digit height: 7,5 mm
Bracket depth: 25 mm
Min./max. measurement force: 7-12 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 293-140-30
