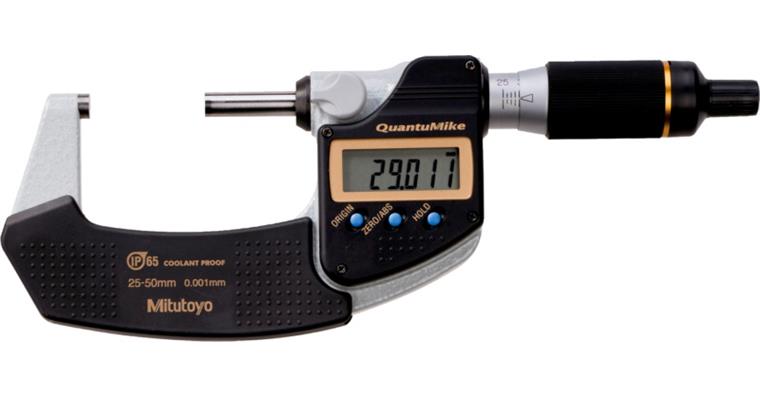

QuantuMike digital micrometer measuring range 25-50 mm

QuantuMike digital micrometer measuring range 25-50 mm

QuantuMike digital micrometer measuring range 25-50 mm
Item no: 1031016 302

Online price:

Available in 11-13 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • Excellent accuracy
  • Ratchet thimble makes one-handed operation easier
  • Excellent resistance to water and dust (IP65) enables use in machining situations that involve cooling lubricants
  • Semi-gloss chrome-plated scale drum and sleeve, dia. 19.3 mm
  • Functions: ABS/INC (INC ZERO), automatic power off after 20 mins of inactivity, Hold

Advantage
  • Larger spindle pitch of 2 mm/r for faster measurement
  • Extraordinarily high battery life of 2.4 years

Delivery
1x box
1x wrench
1x battery (type SR-44)
1x setting gauge (from 25 mm)
1x factory test certificate (up to 50 mm measuring range)

Notes
For setting gauges, see art. no. 1031579.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 25-50 mm
Digit increment: 0,001 mm
Measuring spindle increments: 2 mm
Measuring surface diameter: 6,3 mm
Data transmission type: No
Error limit: 0,001 mm
IP protection class: IP 65
Other standard: Company standard
Spindle clamping: Yes
Digit height: 7,5 mm
Bracket depth: 32 mm
Min./max. measurement force: 7-12 N
Number of setting dimensions: 1 PCS
Calibration Group: D | E

Manufacturer part no.: 293-146-30

EAN no.: 4946368716695

Product Datasheet
