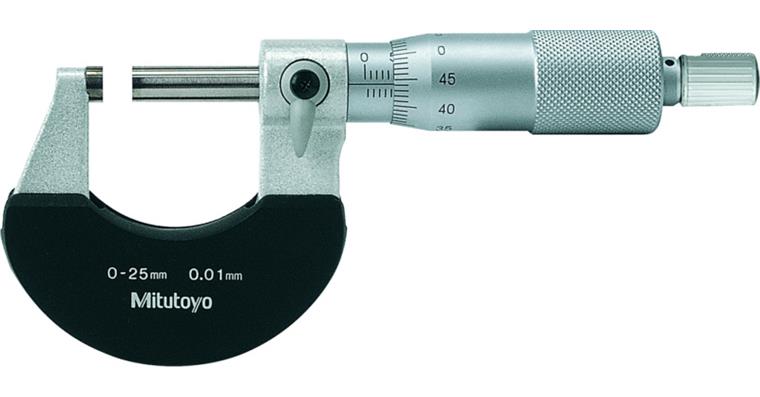

Micrometer with thermal insulation 0-25 mm

Versions

Item no: 1031016 101

Online price:

Catalogue price: You save:

Still in stock: 3

Min. order quantity: 1

Application
For measuring shaft diameters, external dimensions etc.

Execution

Semi-gloss chrome-plated scale drum and sleeve
Carbide-tipped measuring surfaces
Friction coupling for consistent, repeatable measuring force

Advantage

Insulated frame
Cut-away frame (behind anvil) for measuring in hard-to-reach areas

Delivery
1x box
1x wrench
1x setting gauge (from 25 mm)
1x factory test certificate (0-50 mm measuring range)

Brand: MITUTOYO
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,3 mm
Error limit: 0,002 mm
Other standard: Company standard
Spindle clamping: Yes
Bracket depth: 26 mm
Min./max. measurement force: 5-10 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 102-301

EAN no.: 4946368385624

Product Datasheet
