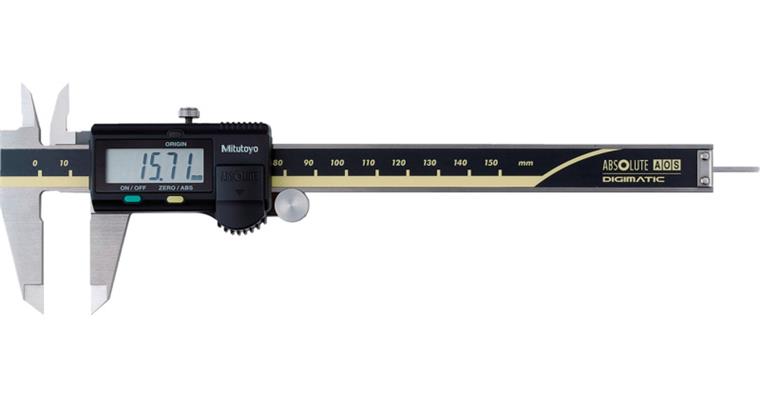

Digital pocket vernier callipers 0-150 mm with data output and drive wheel

Digital pocket vernier callipers 0-150 mm with data output and drive wheel

Digital pocket vernier callipers 0-150 mm with data output and drive wheel
Item no: 1031015 201

Online price:

Still in stock: 4

Application
For measuring external, internal, step and depth dimensions.

Execution
  • AOS (Advanced Onsite Sensor) magnetic-inductive scale, which can also be used with the IP67 callipers.
  • High-contrast digital display
  • Locking screw at the top
  • With drive roller
  • Functions: ORIGIN (ABS zero point), ON/OFF, ABS/INC (INC ZERO), low voltage alarm

Advantage
  • Due to the magnetic-inductive ABS scale used, contamination of the scale (by dust, oil, water etc.) has no influence on the measurement.
  • ABS (ABSOLUTE) scale does not require any further adjustment of the zero position after powering on and boasts unlimited response speed

Delivery
1x box
1x battery

Notes
For test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 607.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Round
Length of jaw: 40 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,04 mm
IP protection class: IP 40
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
With drive wheel: Yes
Other standard: Company standard
Calibration Group: A
Length of cross tips: 16,5 mm
Depth gauge rod thickness: 1,9 mm
Digit height: 9 mm
Type of locating: With locking screw

Manufacturer part no.: 500-158-30

EAN no.: 4946368667904

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Digital pocket vernier callipers 0-150 mm without data output
  •
    Digital pocket vernier callipers 0-150 mm without data output
  •
    Digital pocket vernier callipers 0-200 mm without data output
  •
    Digital pocket vernier callipers 0-150 mm with data output and drive wheel
  •
    Carbide hole saw flat cut dia. 63 mm
  •
    1/4 inch screwdriver bit CVD-TiN slotted 0.6x3.5 mm
  •

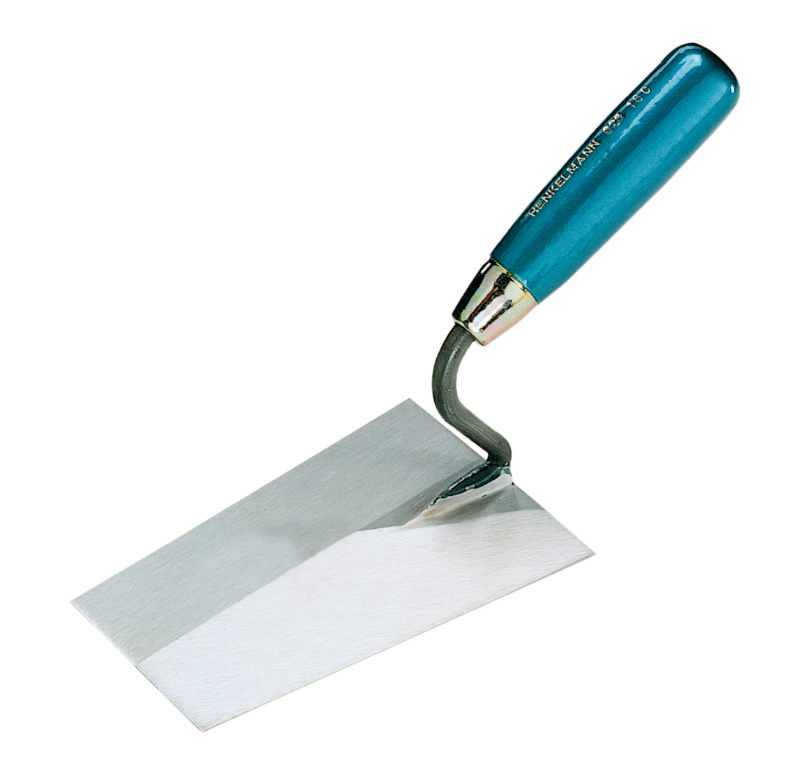

    Brick trowel with S-neck hardened steel, blade length 160 mm
