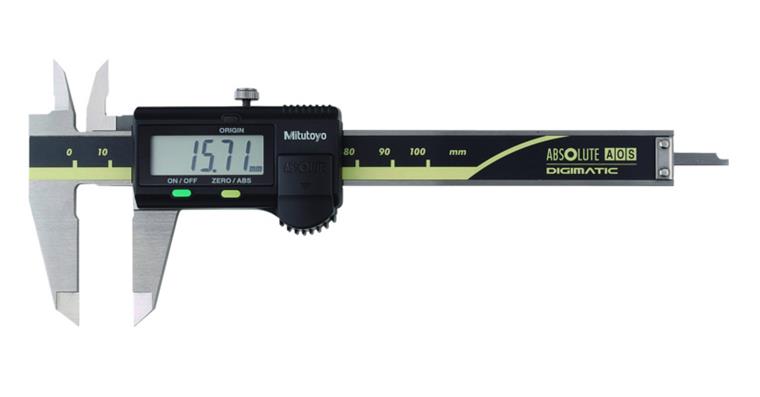

Digital pocket vernier callipers 0-100 mm without data output

Digital pocket vernier callipers 0-100 mm without data output

Digital pocket vernier callipers 0-100 mm without data output
Item no: 1031015 108

Online price:

Available in 11-13 working days.

Application
For measuring external, internal, step and depth dimensions.

Execution
  • AOS (Advanced Onsite Sensor) magnetic-inductive scale, which can also be used with the IP67 callipers.
  • High-contrast digital display
  • Locking screw at the top
  • Functions: ORIGIN (ABS zero point), ON/OFF, ABS/INC (INC ZERO), low voltage alarm

Advantage
  • Due to the magnetic-inductive ABS scale used, contamination of the scale (by dust, oil, water etc.) has no influence on the measurement.
  • ABS (ABSOLUTE) scale does not require any further adjustment of the zero position after powering on and boasts unlimited response speed

Delivery
1x box
1x battery

Notes
For test gauge, see art. no. 1032060 201.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-100 mm
Digit increment: 0,01 mm
Depth gauge rod: Round
Length of jaw: 40 mm
Data transmission type: No
Error limit: 0,04 mm
IP protection class: IP 40
With drive wheel: No
Other standard: Company standard
Calibration Group: A
Length of cross tips: 16,5 mm
Depth gauge rod thickness: 1,9 mm
Digit height: 9 mm
Type of locating: With locking screw

Manufacturer part no.: 500-180-30

EAN no.: 4946368667713
