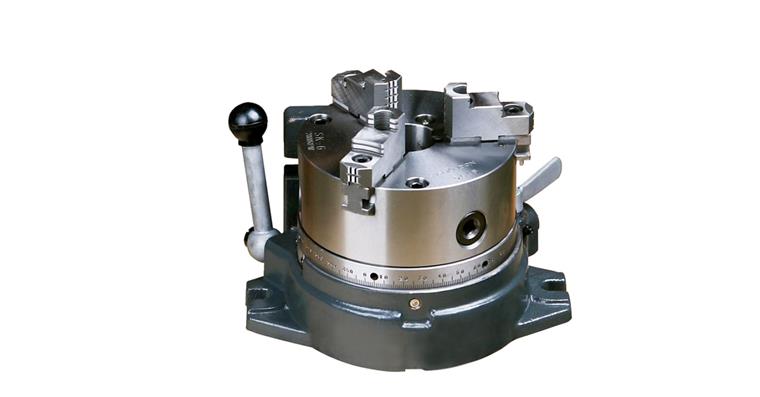

Horizontal-vertical index unit HRTE 165 with 3-jaw chuck, chuck diameter 165 mm

Item no: 1029003 101

Online price:
Catalogue price:

You save:

Will be ordered for you

Add to watch list

Quantity

Min. order quantity: 1

Add to basket

Description

Execution

With three-jaw chuck
Rotary indexing table made of high-quality Meehanite cast iron, reliable and precise with precision tapered roller bearings
Large spindle opening, for clamping longer workpieces
Indexing in degrees using 360° scale
Direct indexing by means of a locking disc for higher speeds of mass-produced parts
24 positions (15° pitch)
7 locking discs for 2, 3, 4, 6, 8, 12 and 24-x pitches
Includes clamping disc with 3 grooves

Technical data

Brand: ---
Point height: 130 mm
Indexing part height: 200 mm
Lathe chuck diameter: 165 mm
Clearance hole: 36 mm
Width: 260 mm
Length: 218 mm
Weight: 32,5 kg
