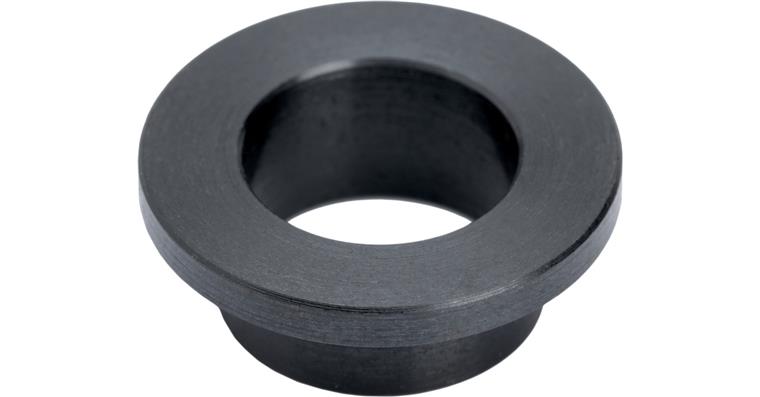

ATORN Easy Point spacer sleeve M12-M10

ATORN Easy Point spacer sleeve M12-M10

ATORN Easy Point spacer sleeve M12-M10
Item no: 1027862 107

Online price:

Available in 4-6 working days.

Application
The spacer sleeve is used for reduction when using smaller fastening screws for the Easy Point clamping system. Required for mounting on machine tables or similar using M10 clamping screws.

Execution
  • Made of tool steel
  • Polished clamping and working surfaces
  • no mounting required

Advantage
  • The spacer sleeve can be used to convert to M10, even on machine tables or pallets where mounting with M12 clamping screws is not possible.
  • Simply insert and use an M10 clamping screw
  • Maintenance-free

Delivery
1x M12-M10 spacer sleeve


Brand: ATORN
Type: Spacer sleeve M12-M10
Length: 7,0 mm
Length 2: 5,0 mm
Diameter: 18,5 mm
Diameter 2: 12,8 mm
Diameter 3: 10,5 mm
Weight: 0,052 kg

ATORN-No.: 22880015

EAN no.: 4066107008048

Product Datasheet
