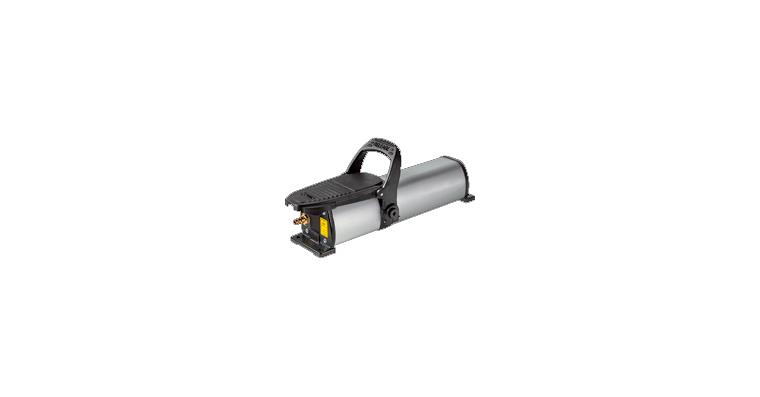

ATORN air hydraulic pump for zero point clamping systems

ATORN air hydraulic pump for zero point clamping systems

ATORN air hydraulic pump for zero point clamping systems
Item no: 1027843 201

Online price:

Available in 6-8 working days.

Application
The air-hydraulic pump is used for opening hydraulic clamping modules or hydraulic clamping stations.

Execution
Compact, compressed air operated hydraulic pump for single-acting circuits. The pump is equipped with a built-in safety valve which controls the hydraulic output pressure. the factory default setting of the safety valve is max. operating pressure of 60 bar. through the expansion body in the oil tank, the pump can be used horizontally and vertically. connecting thread air: G1/4 connecting thread oil: G1/4

Delivery
1x air-hydraulic pump without connection material

Notes
We recommend the use of clean and lubricated compressed air to operate the pump.

ATORN-No.: 21710216

EAN no.: 4050293319484

Product Datasheet
