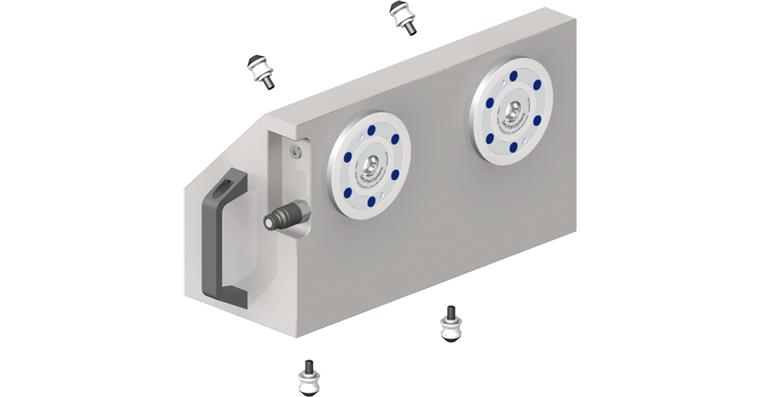

ATORN angle clamping bracket 2-way hydraulic K10.2

ATORN angle clamping bracket 2-way hydraulic K10.2

ATORN angle clamping bracket 2-way hydraulic K10.2
Item no: 1027831 401

Online price:

Available in 6-8 working days.

Application
Hydraulic clamping bracket for clamping with optimised setup time on K10.2 clamping stations. Clamping bolts mounted underneath. The pitch for the clamping modules is 200 mm. The quick-action coupling plug is pre-assembled, the integrated blow-out function can be connected individually.

Execution
  • Hydraulic unlocking
  • Pneumatic blow-out
  • Open operating pressure: 50-60 bar
  • High-strength aluminium
  • Contact surface for clamping modules: Hardened stainless steel
  • Base plate: Unhardened steel

Advantage
Repeat accuracy < 0.005 mm

Delivery
1x angle clamping bracket

Notes
* Please follow the installation instructions.

ATORN-No.: 21710232

EAN no.: 4050293642995

Product Datasheet
