ATORN wedge clamping device with allowance, 22x15 mm, M8, including slot nut

ATORN wedge clamping device with allowance, 22x15 mm, M8, including slot nut

ATORN wedge clamping device with allowance, 22x15 mm, M8, including slot nut
Item no: 1027753 301

Online price:

Available in 8-10 working days.

Application
For screwing directly onto multiple clamping rails. Use a clamping screw to clamp two components simultaneously. All modules can be combined with all rails.

Execution
  • Version with allowance
  • With 4 mm allowance on each side
  • Designed for the insertion of special designs

Advantage
  • The wedge clamping device can be positioned freely on any type of multiple clamping rail
  • All module sizes fit on all clamping rail widths

Delivery
1x wedge clamping device; incl. sliding block and screw


Brand: ATORN
Taper clamp design: With allowance
Taper clamp width (Keilspannerbreite B): 30 mm
Jaws width (Backenbreite A): 22 mm
Taper clamp height (Keilspannerhöhe C): 15 mm
Max. length: 39 mm
Min. length: 33 mm
Height (Höhe h2): 5 mm
Tension force: 1500 kN
Fastening thread: M8

ATORN-No.: 22940046

EAN no.: 4066107022174

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Boring bar w. cool. ch. right neg. 0° t.a. 55° s.a. 93° A32S-PDUNR-15 f. rh. II
  •
    ATORN wedge clamping device with allowance, 57x29 mm, M12, including slot nut
  •
    ATORN wedge clamping device with allowance, 72x29 mm, M12, including slot nut
  •
    Single open-end wrench 15° DIN 894 special steel AF 70 mm
  •
    12kt-Knarren-Ringschlüssel verchromt und satiniert SW 12x13 mm
  •
    Workshop slotted screwdriver Soft-Finish handle 0.8x4x25 mm
  •
    TX® screwdriver Kraftform handle T 20x100 mm for internal TX®
  •
    High-pressure push gun approx. 200 bar with universal nosepiece 60 ml
  •
    Work swivel chair Unitec with glide runner seat height 440-620 mm synth. leather
  •

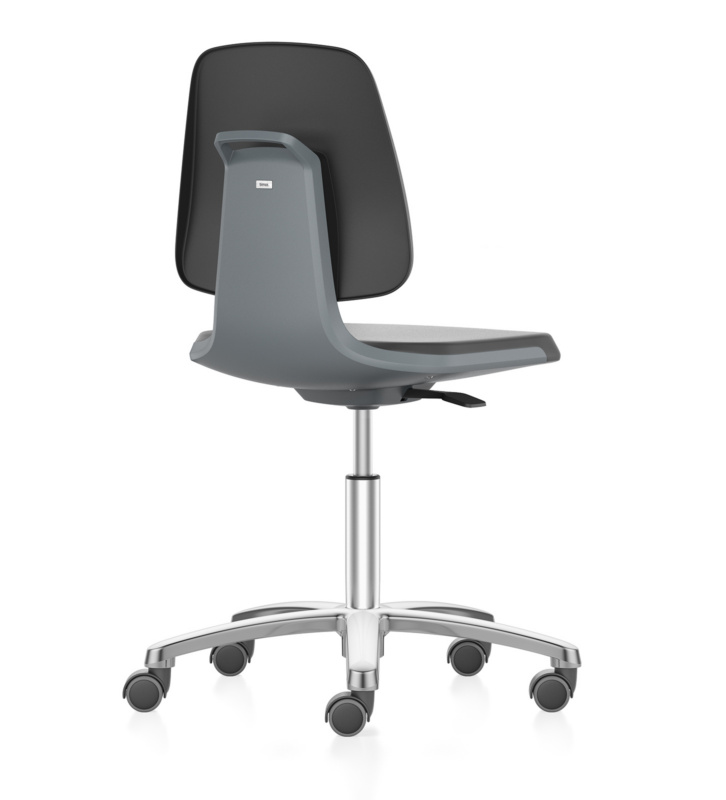

    Work swivel chair Labsit castors synth. leather anthracite seat height 450-650mm
  •
