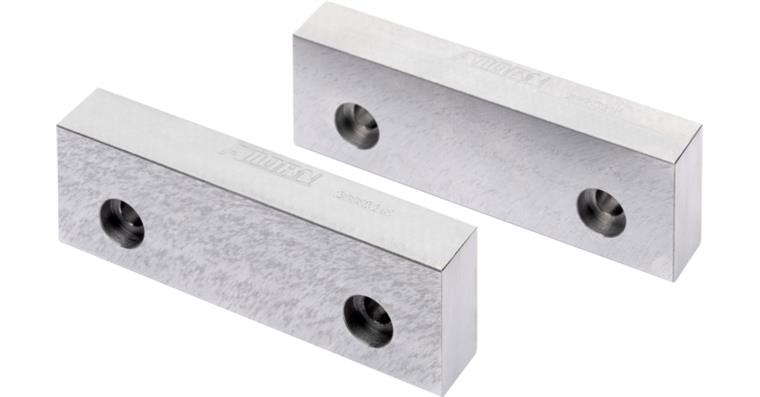

ATORN SBW-S soft clamping jaws made of steel 160x20.4x50.4 mm suitable for Hilma

ATORN SBW-S soft clamping jaws made of steel 160x20.4x50.4 mm suitable for Hilma

ATORN SBW-S soft clamping jaws made of steel 160x20.4x50.4 mm suitable for Hilma
Item no: 1027718 208

Online price:

Available in 6-8 working days.

Application
Clamping jaws for universal use according to requirements. The jaws are screwed directly into the screw-on jaws.

Execution
  • Steel version
  • Not hardened and ground
  • Designed for the insertion of special variants

Advantage
  • Reversible
  • For custom adaptation according to machining requirements
  • Easy and quick changing

Delivery
1 set of soft clamping jaws type SBW-S including fastening screws

Notes
Suitable for Hilma-Roemheld NC125; NC160; KNC125; KNC160; EL125 and EL160

Brand: ATORN
Type: Soft clamping jaws made of steel
Jaw design: Smooth
Jaws width: 160 mm
Jaws thickness: 20 mm
Jaws height: 54 mm
Hole distance: 100 mm
Hole distance (vertical): 17 mm

ATORN-No.: 22730062

EAN no.: 4066107040789
