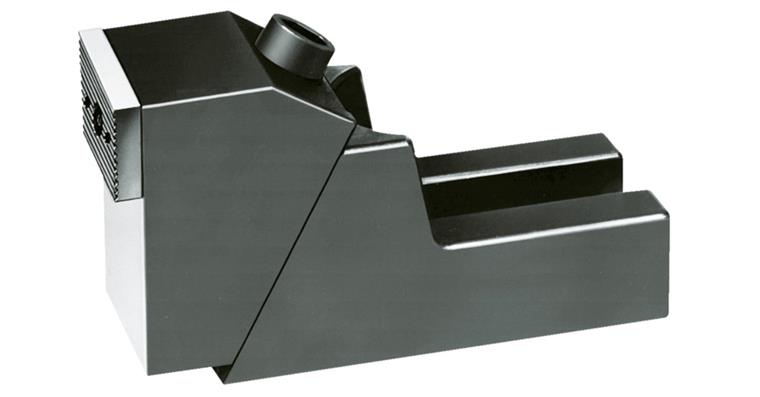

Stable clamping jaws for nominal groove size 20-30 mm, can be rotated

Stable clamping jaws for nominal groove size 20-30 mm, can be rotated

Stable clamping jaws for nominal groove size 20-30 mm, can be rotated
Item no: 1027213 102

Online price:

Available in 6-8 working days.

Application
The large clamping surface makes these sturdy clamping jaws suitable for lateral clamping of tall workpieces. We recommend using two clamping screws to fix the stable clamping jaw on the machine table. Depending on the groove width, screws for T-grooves to DIN 787 (art. no. 1027015) - two pieces per clamping jaw - must be ordered separately as fastening screws.

Execution
  • Tall design with precise prism guide
  • Basic body: Malleable iron
  • Clamping jaws: Case-hardening steel, case-hardened
  • Reversible clamping jaws, with smooth side for machined workpieces and grooved side for unfinished clamping surfaces

Notes
Clamping forces F1 and F2 are dependent on the groove width.

Brand: AMF
Min./max. groove width: 20-30 mm
Width (B1): 26 mm
Width 2 (B2): 75 mm
Section (C): 11 mm
Width of clamping jaw (E): 12 mm
Min. clamping height (H min.): 61 mm
Max. clamping height (H max.): 118 mm
Height (H1): 45 mm
Clamping jaw height (H2): 40 mm
Length (L1): 230 mm
Length 2 (L2): 138,5 mm
Min./max. clamping force (F1 min./max.): 25-36 kN
Min./max. clamping force 2 (F2 min./max. ): 4.5-5.4 kN

Manufacturer part no.: 73221

EAN no.: 4020772073220

Product Datasheet
