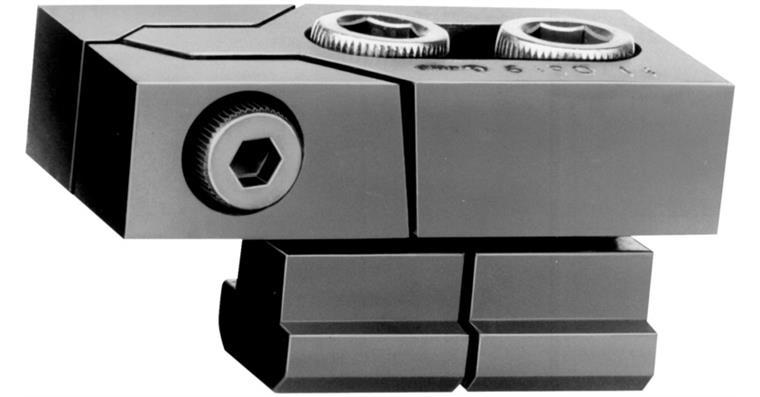

Deep clamping jaws, pair, model Bulle, nominal groove size 28 mm M 24

Deep clamping jaws, pair, model Bulle, nominal groove size 28 mm M 24

Deep clamping jaws, pair, model Bulle, nominal groove size 28 mm M 24
Item no: 1027210 109

Online price:

Available in 6-8 working days.

Application
For clamping with low-pressure effect.

Execution
  • Heat-treated with a black oxide finish
  • Wedge effect forwards and downwards

Advantage
  • No protruding clamping screws
  • Clamps at every angle to the groove

Delivery
In pairs in a box, complete with fastening screws to ISO 4762 (10.9), nuts for T-grooves to DIN 508 and hexagon screwdriver to ISO 2936.

Notes
Also deliverable on request for groove width 30 mm.

Brand: AMF
Suitable for groove width: 28 mm
Width (b1): 78 mm
Distance (c): 5 mm
Suitable cheese-head screw DIN 912 (d): M24
Overall height of pull-down jaw (h1): 30 mm
Length (l): 140 mm
Length 2 (l1): 65 mm
Length 3 (l2): 50 mm
Tension force (Spannkraft F1): 40 kN
Clamping force 2 (Spannkraft F2): 1,6 kN

Manufacturer part no.: 73031

EAN no.: 4020772073039

Product Datasheet
