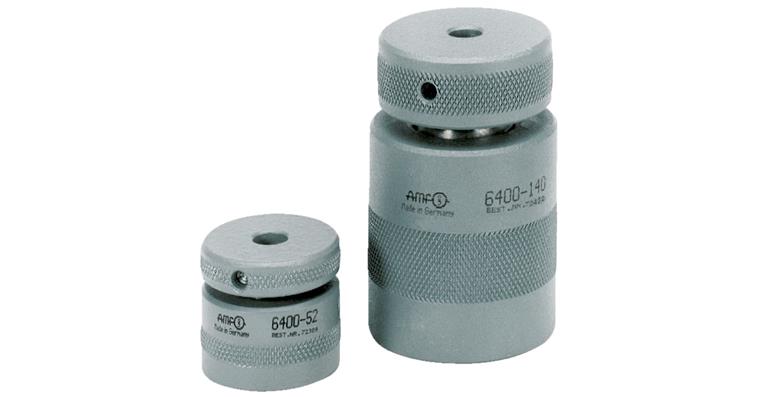

ApplicationSizes 52-100 are suitable for clamps with a slot width of approx. 14-22 mm. The Atlas screw jacks, art. no. 1027138, provide a useful extension for large clamping heights.
Sizes 140-300 are suitable for clamps with a slot width of approx. 20-40 mm. The screw jacks, AMF no. 6435S, provide an extension for large clamping heights.
When using clamps to DIN 6315B (art. no. 1027105), 6315C (art. no. 1027108) and 6315GN (art. no. 1027106) from 26 mm slot width, we recommend the fixing attachment with art. nos. 1027145 103-104.
Size 200 is designed to support large workpieces.
Suitable attachments for screw jack sizes 52-300 are art. nos. 1027145 101-106.
Art. no. 1027145 106 is a suitable substructure for
sizes 52-100.
Do not adjust the screw jack under load.
Execution- Spindle: Trapezoidal self-locking thread, with end lock
- Heat-treated steel, painted
AdvantageHigher support forces F max. due to material optimisation for sizes 50-140
NotesAluminium and magnetic screw jacks deliverable on request.
