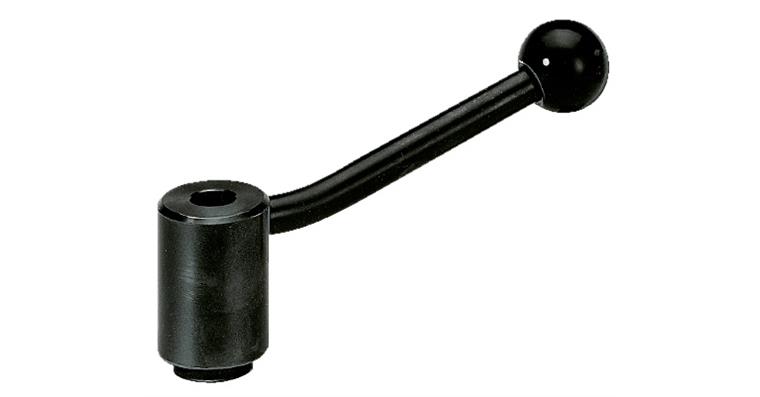

Detent clamp lever for T-groove 16+18 mm M 16

Detent clamp lever for T-groove 16+18 mm M 16

Detent clamp lever for T-groove 16+18 mm M 16
Item no: 1027117 102

Online price:

Available in 6-8 working days.

Application
Suitable for adjustable clamps with art. nos. 1027111 and 1027112 and adjustable clamps with art. nos. 1027115, 1027226 and 1027118.

Execution
  • Steel, burnished
  • Thread on the clamp lever M 12, suitable for nominal groove size 12 and 14
  • Thread on the clamp lever M 16, suitable for nominal groove size 16 and 18


Brand: AMF
Thread dimension (M): M16
Diameter (d): 40 mm
Height (h): 64 mm
Length (l): 158 mm

Manufacturer part no.: 74617

EAN no.: 4020772074616

Product Datasheet
