Clamping screw set for T-grooves nominal groove size 22 M 20

Clamping screw set for T-grooves nominal groove size 22 M 20

Clamping screw set for T-grooves nominal groove size 22 M 20
Item no: 1027020 108

Online price:

Available in 6-8 working days.

Application
Different clamping heights can be achieved as required using stud screws (extension bolts) and extension nuts.

Execution
  • All parts heat treated
  • Strength class 8 or 10

Delivery

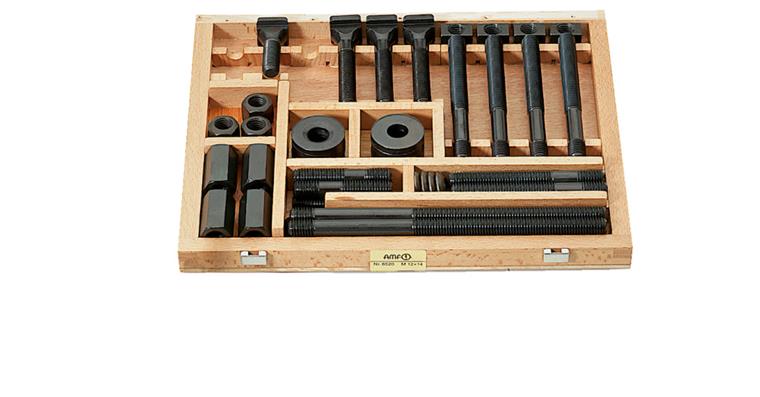

In a sturdy, high-quality wooden box with removable hinged lid.

Notes
All parts are also deliverable individually.

Brand: AMF
Suitable for groove width: 22 mm
Thread dimension: M20
Number of DIN 787 T-slot screws: 2 x M20 x 80 mm | 4 x M20 x 125 mm
Number of DIN 6379 stud bolts (extension pin): 4 x M20 x 200 mm | 4 x M20 x 315 mm | 4 x M20 x 80 mm | 4 x M20 x 125 mm
Number of DIN 508 slots: 4 PCS
Number of DIN 6330 B high nuts: 4 PCS
Number of extension nuts: 4 PCS
Number of washer DIN 6340: 4 PCS
Number of rounded washers and ball sockets DIN 6319 G: 4 PCS
Wooden box length: 358 mm
Wooden box width: 342 mm
Wooden box height: 56 mm

Manufacturer part no.: 8305

EAN no.: 4020772083052

Product Datasheet
Versions
