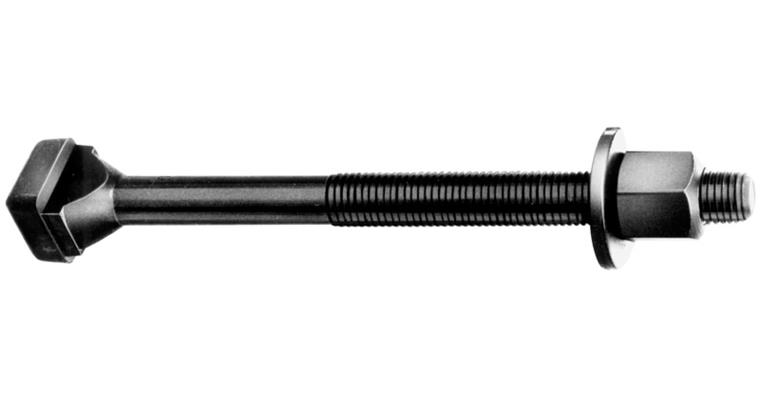

Screw for T-grooves (clamping screw) DIN 787 nominal groove size 22 M20 x 160 mm

Screw for T-grooves (clamping screw) DIN 787 nominal groove size 22 M20 x 160 mm

Screw for T-grooves (clamping screw) DIN 787 nominal groove size 22 M20 x 160 mm
Item no: 1027015 344

Online price:

Still in stock: 1

Execution
  • Forged
  • Tempered
  • T-groove guide broached
  • Rolled thread

Advantage
  • Advantages of the threaded roller:
  • Fibre structure not interrupted
  • Decreased notch sensitivity
  • Very good roughness values on the thread flanks and in the base radius

Delivery
Complete with DIN 787 screw for T-grooves, hexagon nut to DIN 6330B and washer to DIN 6340

Notes
T-groove screws (DIN 787) with other lengths and thread sizes, screws also deliverable without nut and washer and with strength class 12.9 on request.

Brand: AMF
Groove width: 22 mm
Thread dimension (d1): M20
Length excluding head (l3): 160 mm
Thread length (l2): 110 mm
Head height (l4): 14 mm
Length of head (b1): 35 mm
Outer diameter (b2): 21,7 mm
Property class: 8.8
DIN: 787
Design: Forged | Tempered | With nut | With washer

Manufacturer part no.: 85811

EAN no.: 4020772085810

Product Datasheet
