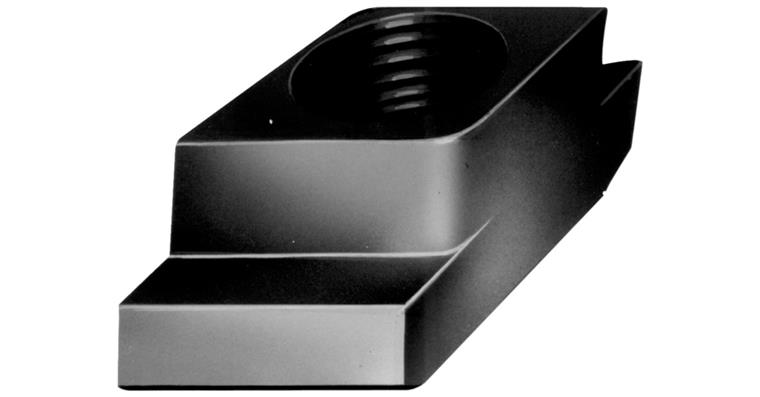

T-sliding block rhombic M 12 x 14 tempered

T-sliding block rhombic M 12 x 14 tempered

T-sliding block rhombic M 12 x 14 tempered
Item no: 1027007 102

Online price:

Available for immediate delivery

Application
Additional clamping point set up when fixture already clamped.
Clamping point set up subsequently when machine table T-groove already occupied.
Insert the "Rhombus" T-groove nut into the T-groove from above and turn it until it stops in the T-groove.
Use in conjunction with stud screws to DIN 6379.

Execution
Tempered

Notes
The nuts for "Rhombus" T-grooves are heat treated to grade 10.
Due to the reduced contact surface in the T-groove, the load capacity is lower than for the comparable sizes to DIN 508.
The screw connection must be made over the entire thread length "h1".

Brand: AMF
Nominal dimension of groove: 14 mm
Thread dimension (d1): M12
Slot nut width (a): 13,7 mm
Length (b1): 22 mm
Height (h1): 16 mm
Slot nut height (h2): 8 mm

Manufacturer part no.: 80267

EAN no.: 4020772080266

Product Datasheet
