Soft interchangeable jaw grip long serration 1.5 mm x 60° for chuck dia. 305 mm

Soft interchangeable jaw grip long serration 1.5 mm x 60° for chuck dia. 305 mm

Soft interchangeable jaw grip long serration 1.5 mm x 60° for chuck dia. 305 mm
Item no: 1026937 104

Online price:

Available in 8-10 working days.

Application
Suitable for the following power chuck brands: Kitagawa and Matsumoto.

Execution
Art. nos. 1026937 101-104: long design, bevelled for small clamping diameters

Delivery
Set = 3 pieces

Notes

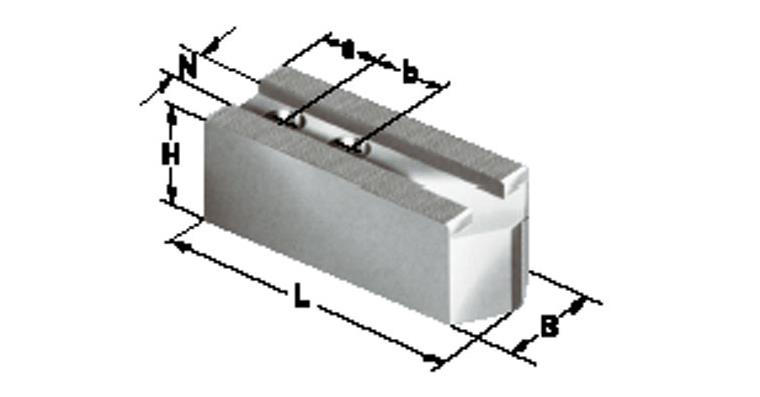

Please compare toothing, groove width (N) and hole spacing (a, b) to make adjustments to the power chuck.

Brand: RÖHM
Chuck clamping diameter: 305 mm
Design: Normal
Groove width: 18 mm
Hole distance 1: 30 mm
Hole distance 2: 30 mm
Jaws height: 50 mm
Jaws length: 145 mm
Jaws width: 50 mm
Thread dimension: M14

Manufacturer part no.: 1132789

EAN no.: 4024496069743

Product Datasheet
