VDI HOLDER DIN 69880 C1C4A-40X25X85

VDI HOLDER DIN 69880 C1C4A-40X25X85

VDI HOLDER DIN 69880 C1C4A-40X25X85
Item no: 1021950 175

Online price:

Available in 8-10 working days.

Application
For clamping standard and internally cooled insert holders

Execution
  • VDI holder
  • With grub screw for setting the cooling only on the insert holder
  • With double toothing

Advantage
  • Cooling via ball nozzle and/or insert holder
  • External cooling with G1/8 hose
  • Coolant tightness up to 80 bar


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d1): 40 mm
Shaft height (h1): 25 mm
Overall length (l1): 85 mm
Overall width (b1): 85 mm
Width 2 (b2): 42,5 mm
Width 3 (b3): 21 mm
Length 2 (l2): 12,5 mm
Height (h3): 35 mm
Height 2 (h4): 30 mm
Height 3 (h5): 38 mm
Height 4 (h6): 48 mm
Height (visible) (h8): 40 mm
Angle (Winkel): 15 Degree

EAN no.: 4024496149490

Product Datasheet
Additional articles

Please select a button.

Spare Parts
Versions
loading
Keywords:

You might also be interested in this

  • ATORN SC mini torus mill cttr TiAlSiN 3x3x60 mm clearance 2.92x20 mm R 0.5 mm
  •

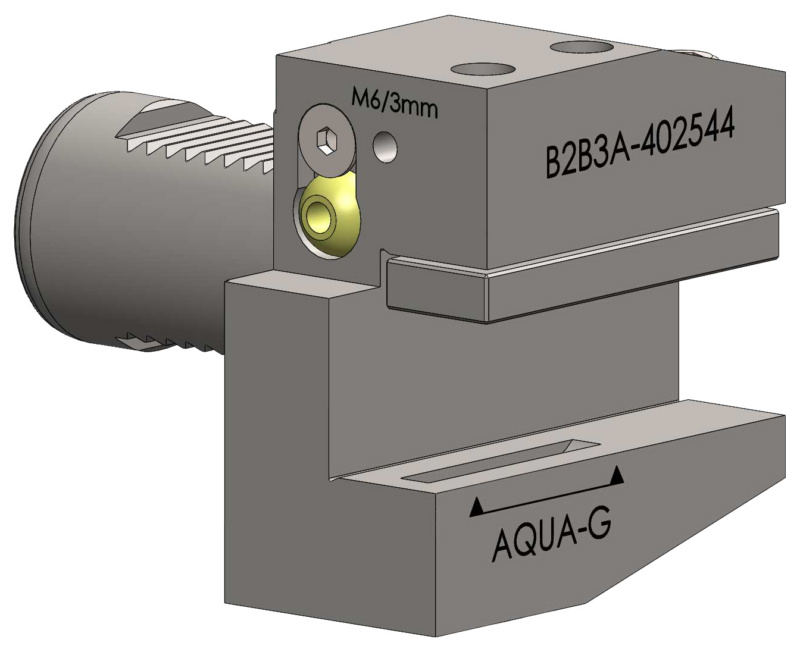

    VDI HOLDER DIN 69880 B2B3A-40X25X44
  •
