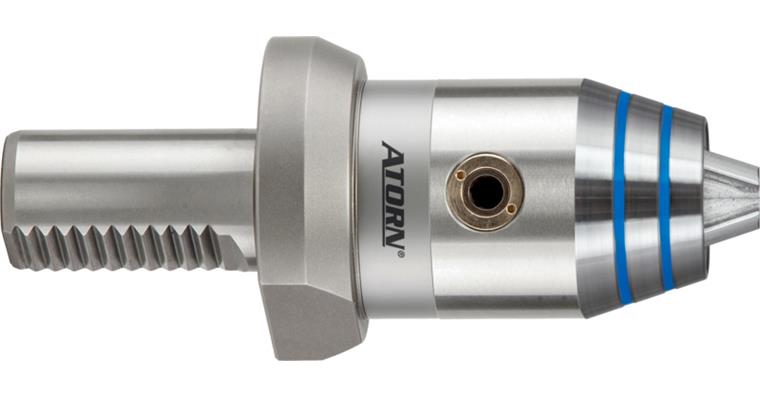

ATORN precision drill chuck VDI40 DIN 69880 dia. 0.5-16 mm

ATORN precision drill chuck VDI40 DIN 69880 dia. 0.5-16 mm

ATORN precision drill chuck VDI40 DIN 69880 dia. 0.5-16 mm
Item no: 1021948 301

Online price:

Still in stock: 1

Application
For use on CNC machines for drilling, countersinking and reaming.

Execution
  • Wear parts hardened and polished
  • CENTRAL COOLANT SUPPLY

Advantage
Remains securely clamped even with sudden spindle stop

Delivery
Including hexagon key


Brand: ATORN
VDI mount diameter (VDI Aufnahmedurchmesser d): 40 mm
Min./max. clamping width: 0.5-16 mm
Outer diameter (D): 57 mm
Discharge length, open (L1 max): 103 mm
Discharge length, closed (A): 90 mm
Coolant supply: Internal

ATORN-No.: 21040104

EAN no.: 4050293321357
