Collet chuck OZ dia. 20 clamping range 2-16 coolant supply shape E3 DIN 69880

Collet chuck OZ dia. 20 clamping range 2-16 coolant supply shape E3 DIN 69880

Collet chuck OZ dia. 20 clamping range 2-16 coolant supply shape E3 DIN 69880
Item no: 1021924 101

Online price:

Available in 8-10 working days.

Application
For centring and drilling.

Execution
  • Type E3, axial
  • Coolant supply through the collet chuck
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Completely burnished and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings

Notes
For collet chucks, see art. nos. 1021547-1021559.

Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 20 mm
Collet type: OZ 415E | OZ 410E
Min./max. clamping range: 2-16 mm
Projecting length (l): 55 mm
Outer diameter (D1): 43 mm
Height (h): 18 mm
Max. clamping range: 16 mm
Min. clamping range: 2 mm
Collar diameter (D): 50 mm
Collar height (l1): 18 mm

EAN no.: 4024496066568

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Fastening material j/wdth=125 mm f. mech. cen. clamp. dev. MZE cat.no. 27591 106
  •
    Collet chuck OZ dia. 40 clamping range 4-32 coolant supply shape E3 DIN 69880
  •
    Collet chuck ER dia. 40 clamping range 2-20 coolant supply shape E4 DIN 69880
  •
    Switch. mag. S, 2 ct sur push-button sw. thr. M6 36x30x35 mm adh force 300 N
  •
    Fastening material j/wdth=100 mm f. mech. cen. clamp. dev. MZE cat.no. 27591 105
  •
    Adjustable tap wrench size 1 DIN 1814 die-cast zinc for screw tap M 1–10
    6,80 €

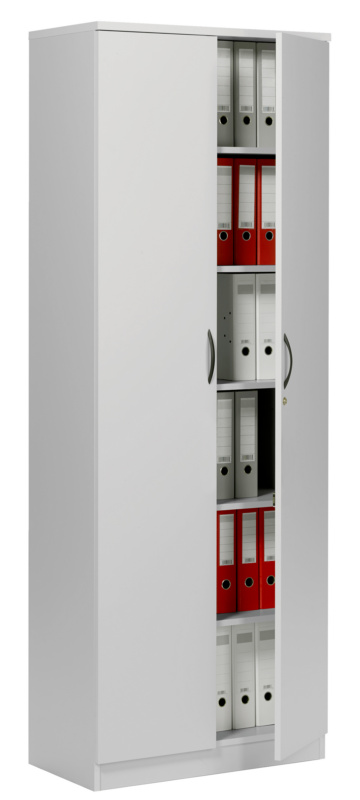

  • Hinged door cabinet multi H2200xW800xD420 mm decor light grey 6 folder heights
