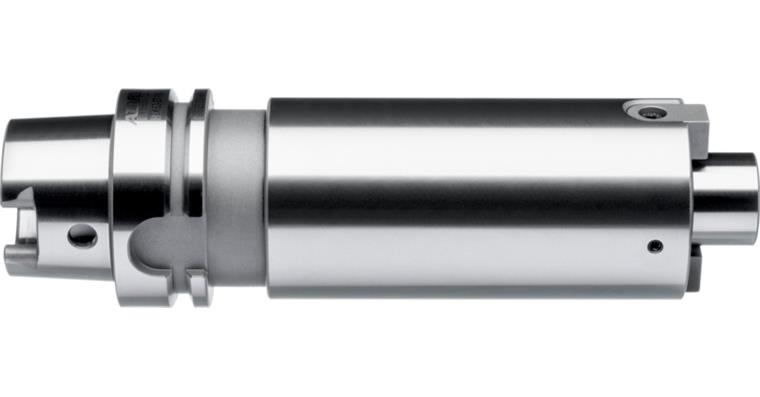

ATORN transverse drive shell end mill arbour HSK63 dia. 22 mm A=130 mm shape AD

ATORN transverse drive shell end mill arbour HSK63 dia. 22 mm A=130 mm shape AD

ATORN transverse drive shell end mill arbour HSK63 dia. 22 mm A=130 mm shape AD
Item no: 1021858 506

Online price:

Available in 8-10 working days.

Application
For accommodating shell end mills and angular milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Internal coolant supply
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Max. concentricity < 0.005 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • With Balluff chip hole

Delivery
1x HSK63 or HSK100 transverse drive shell end mill arbour (ISO 12164); with retaining screw

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Form: A
Mandrel diameter (d1): 22 mm
Tap length (L1): 19 mm
Projecting length (A): 130 mm
Outer diameter (D): 48 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660750

EAN no.: 4050293711653

Product Datasheet
