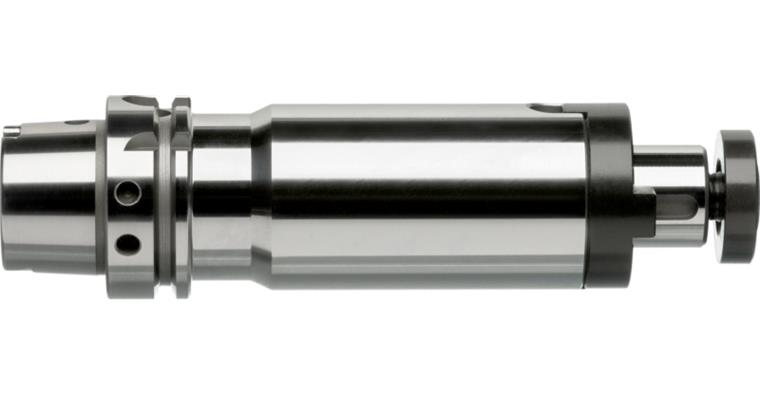

ATORN combination shell end mill arbour HSK63 (ISO 12164) dia. 22 mm A=60 mm

ATORN combination shell end mill arbour HSK63 (ISO 12164) dia. 22 mm A=60 mm

ATORN combination shell end mill arbour HSK63 (ISO 12164) dia. 22 mm A=60 mm
Item no: 1021855 252

Online price:

Available in 8-10 working days.

Application
For holding shell end mills and single angle milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • All functional surfaces are machined
  • Max. concentricity < 0.005 mm
  • With Balluff chip hole
  • Internal cooling with A dimension of 160 mm and 200 mm only

Delivery
1x HSK63 or HSK100 combination shell end mill arbour (ISO 12164); incl. retaining screw, key and drive ring

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Form: A
Mandrel diameter (d1): 22 mm
Tap length (L1): 19 mm
Projecting length (A): 60 mm
Coolant supply: No
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660633

EAN no.: 4050293710489

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN combination shell end mill arbour HSK63 (ISO 12164) dia. 40 mm A=70 mm
    126,38 €
  • Grinding flaps synthetic corundum ISO 3919 30x10 mm shank dia. 6 mm grit 80
  •
    Grinding flaps synthetic corundum ISO 3919 60x30 mm shank dia. 6 mm grit 80
  •
    Combination wrench set long 15° V31CrV3 steel 12 pieces AF 10-32 mm
    287,47 €
  • Straight box wrench DIN 837, ISO 10103 chrome-alloy steel AF 16x17 mm
    16,17 €
  • Straight box wrench DIN 837, ISO 10103 chrome-alloy steel AF 20x22 mm
  •

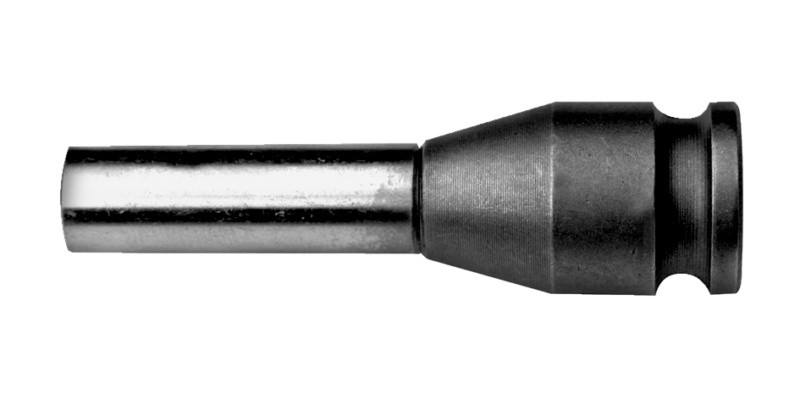

    Power screwdriver adapter 1/4 inch square drive on 1/4 inch bit output
