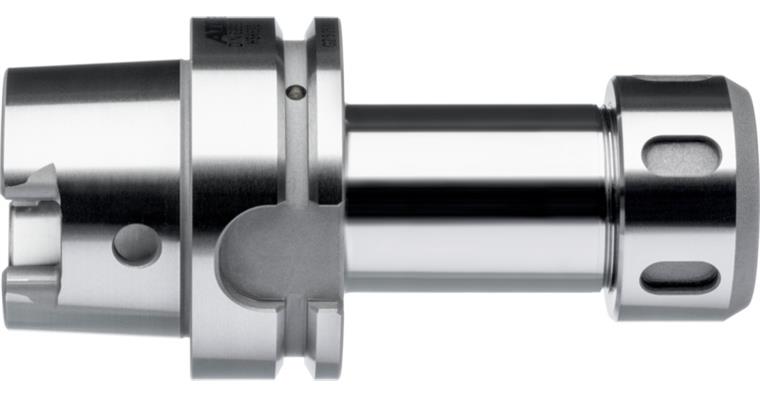

ATORN HSK63 collet chuck (ISO 12164) OZ (4-32 mm) A=120 mm

ATORN HSK63 collet chuck (ISO 12164) OZ (4-32 mm) A=120 mm

ATORN HSK63 collet chuck (ISO 12164) OZ (4-32 mm) A=120 mm
Item no: 1021845 211

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shank in OZ collet chucks in accordance with DIN 6388.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Internal coolant supply
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Max. concentricity < 0.005 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • With Balluff chip hole
  • All functional surfaces are machined

Delivery
1x HSK63 or HSK100 OZ collet chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Collet type: OZ 32
Min./max. clamping range: 3-32 mm
Projecting length (A): 100 mm
Outer diameter (D): 72 mm
Clearance length to collar (L1): 94 mm
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660582

EAN no.: 4050293709971

Product Datasheet
