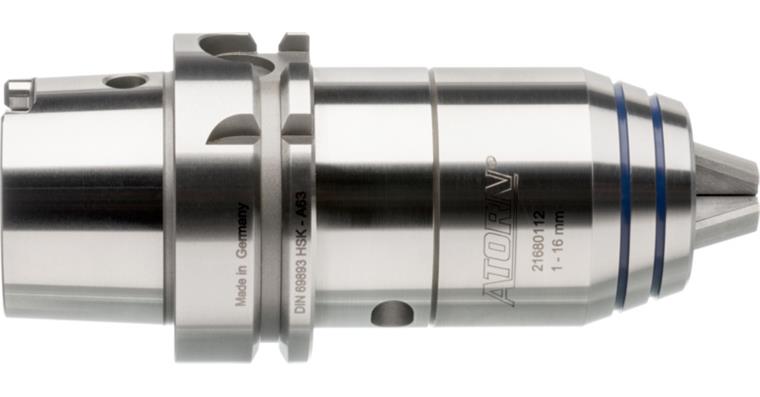

ATORN NC short drill chuck HSK63 dia. 1-16 mm A=100 mm shape A, with IC

ATORN NC short drill chuck HSK63 dia. 1-16 mm A=100 mm shape A, with IC

ATORN NC short drill chuck HSK63 dia. 1-16 mm A=100 mm shape A, with IC
Item no: 1021829 201

Online price:

Available in 6-8 working days.

Application
For use on machining centres and CNC milling machines with tool change systems. For drilling, reaming, countersinking and also light milling and finishing tasks.

Execution
  • With worm gear
  • Precision chuck with high concentricity, concentricity tolerance 0.03 mm

Advantage
Max. tightening torque 10 Nm, corresponds to 70 Nm retention torque

Delivery
1x HSK63 NC or short drill chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Min./max. clamping width: 1-16 mm
Outer diameter (D): 50 mm
Projecting length (A): 98 mm
Length closed (L1): 110 mm
Running direction: Clockwise/anti-clockwise rotation
Coolant supply: Internal axial
Balancing quality: G 40 at 7,000 rpm

ATORN-No.: 21680112

EAN no.: 4050293405958

Product Datasheet
