ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 16 mm A=200 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 16 mm A=200 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 16 mm A=200 mm
Item no: 1021803 408

Online price:

Still in stock: 1

Application
For clamping milling tools and drill bits with h6 shaft tolerance. Suitable for heavy-duty machining and all high-power applications. Suitable for inductive, contact and hot air shrinking devices.

Execution
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • 4 additional drill holes for fine balancing
  • Adjustment travel 10 mm, can be adjusted on both sides
  • Glass bead blasted

Advantage
  • Slim design, extremely low interference contour
  • High transmittable torques
  • High positioning and repeat accuracy
  • Ideal for high rotation speeds

Delivery
1x shrink-fit chuck 3° HSK63 (ISO 12164).

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 16 mm
Projecting length (A): 200 mm
Tapered diameter (d2): 22 mm
Diameter (d3): 34 mm
Clamp in depth (l2): 50 mm
Suitable for thread ( G): M12 x 1
Width across flats: 5 mm
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044838

EAN no.: 4050293440010

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 16 mm A=120 mm
    216,48 €
  • ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 18 mm A=160 mm
    249,04 €

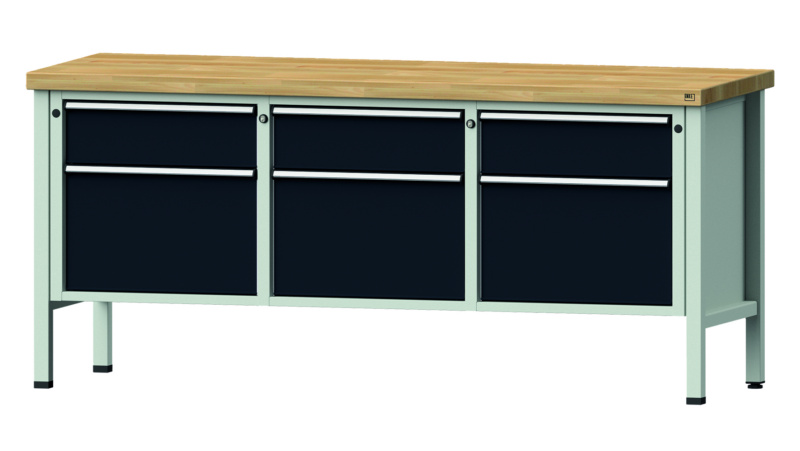

  • Cabinet workbench model 108 V beech solid plate height 850 mm RAL 7035/5012
