Precision centring devices Centricator type C0-S with shank reading 0.005 mm

Precision centring devices Centricator type C0-S with shank reading 0.005 mm

Precision centring devices Centricator type C0-S with shank reading 0.005 mm
Item no: 1021775 201

Online price:

Available in 8-10 working days.

Application

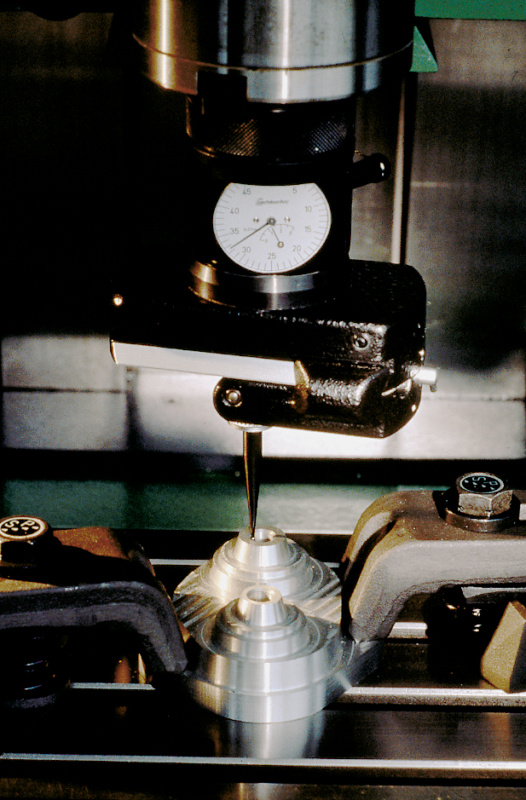

For centring, positioning, aligning, adjusting, checking, probing flat surfaces and edge finding with a working accuracy of 2 µm.

Execution
  • The high-precision mechanics with circumferential probe and stationary dial gauge form the heart of the device.
  • With fixed clamping shank, dia. 16 mm

Delivery

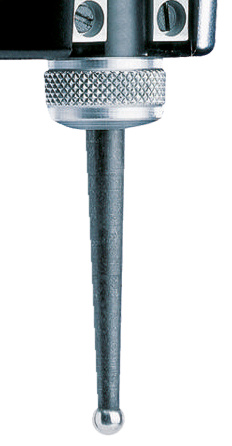

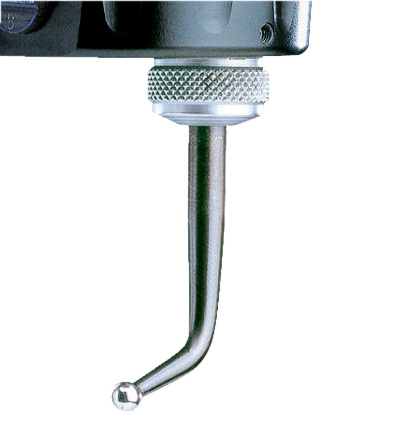

Dial gauge with 0.005 mm reading accuracy, 1 probe insert, ball dia. 5 mm (for bores), 1 bent probe insert, ball dia. 5 mm (for shanks), in a case

Notes
Deliverable with interchangeable straight shanks on request.

Brand: CENTRICATOR
Scale value: 0,005 mm
Min./max. scanning range for external testing: 0-125 mm
Min./max. scanning range for internal testing: 6-125 mm
Min./max. scanning range for plan testing: 120-160 mm
Max. scanning range for external testing: 125 mm
Max. scanning range for internal testing: 125 mm
Max. scanning range for plan testing: 160 mm
Min. scanning range for external testing: 0 mm
Min. scanning range for internal testing: 6 mm
Min. scanning range for plan testing: 120 mm

Manufacturer part no.: 130160

Product Datasheet
