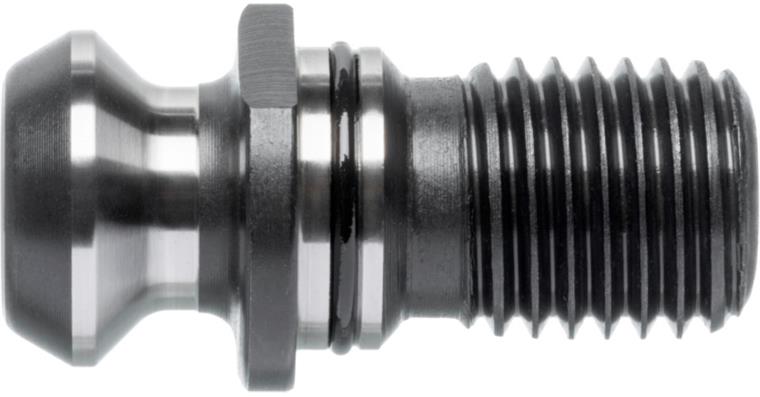

ATORN Mazak pull stud SK40

ATORN Mazak pull stud SK40

ATORN Mazak pull stud SK40
Item no: 1021741 112

Online price:

Available for immediate delivery

Application
For screwing into tool holders. They differ depending on the machine and spindle type and are used to fix the holders in the machine spindle.

Execution
  • All pull studs made from material 16Mn Cr5
  • Case-hardened HRc 58 ± 2
  • Thread and bore hole soft, black oxide and polished
  • Pull studs with O-ring = sealed

Delivery
1x Mazak SK40 pull stud

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 40
Design: With O-ring
Outer diameter (D1): 12,45 mm
Bolt diameter (D2): 17 mm
Diameter (D): 18,8 mm
Length (L): 41,26 mm
Coolant supply: Yes
Angle (α/ A): 45 Degree
Length of tenon (L1): 16,25 mm

ATORN-No.: 20803253

EAN no.: 4050293569438

Product Datasheet
