ATORN Hydro-Max SK40 hydraulic expansion chuck, dia. 12 mm proj. leng.=80 mm

ATORN Hydro-Max SK40 hydraulic expansion chuck, dia. 12 mm proj. leng.=80 mm

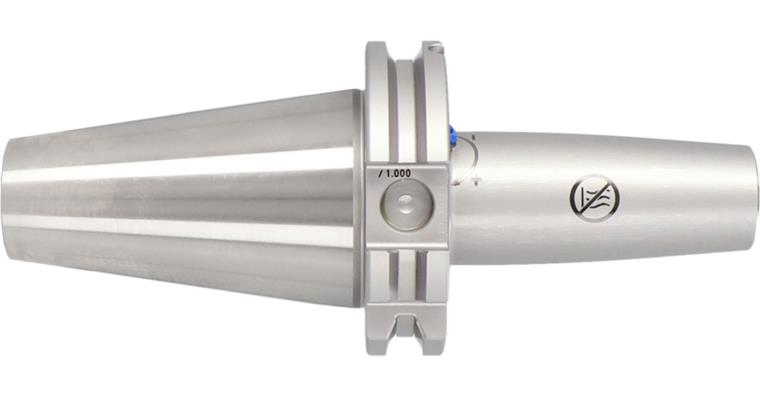

1021711227 ATORN Hydro-Max SK40 hydraulic expansion chuck, dia. 12 mm proj. leng.=80 mm
Item no: 1021711 227

Online price:

Will be ordered for you

Application
For use in reaming and drilling applications as well as for finishing in milling operations. Optimal interaction of geometric and functional properties. Developed for tool and mould making, aerospace and automotive sectors.

Execution
  • With axial tool length adjustment
  • Flexible application by means of reducing sleeves
  • Coolant pressure up to 80 bar.
  • The outer contour of the Hydro-Max is based 1:1 on the ATORN shrink-fit chuck.
  • This means that the advantages of hydraulic expansion clamping technology also apply to these applications.
  • Clamping application in the collar
  • Avec orifice pour copeaux Balluff.

Advantage
  • Damping properties for increasing the service life of the tool and machine spindle.
  • Very high torque transfer (dia. 20 = 330 Nm/dia. 32 = 650 Nm).
  • Hydraulic expansion chuck with original dimensions of a shrink-fit chuck (DIN contour with 4.5°).
  • All standard shanks can be clamped (dia. tolerance h6).
  • Application-oriented system design.

Delivery
1x Hydro-Max SK40 hydraulic expansion chuck (ISO 7388-1)

Notes
The previous standard DIN 69871 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Clamping diameter (d): 12 mm
Projecting length (A): 80 mm
Form: AD/AF
Tapered diameter (d2): 24 mm
Diameter (d3): 32 mm
Clear length (l3): 58,6 mm
Clamp in depth (l2): 46 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Suitable for thread (G): M10 x 1
Width across flats: 5 mm
Balancing quality: G 2.5 at 25,000 rpm
Concentricity tolerance: 0,003 mm

ATORN-No.: 21045290

EAN no.: 4066107122447
