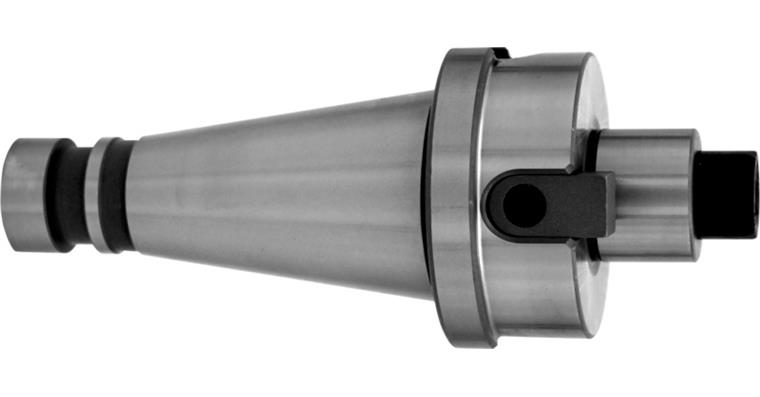

ATORN transverse drive shell end mill arbour SK40 (DIN 2080) dia. 16 mm A=30 mm

ATORN transverse drive shell end mill arbour SK40 (DIN 2080) dia. 16 mm A=30 mm

ATORN transverse drive shell end mill arbour SK40 (DIN 2080) dia. 16 mm A=30 mm
Item no: 1021670 406

Online price:

Available in 8-10 working days.

Application
For holding shell end mills and single angle milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • With ring groove and plastic edge protection ring on the pull stud
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Advantage
Precision cross-hatch pattern on the contact surface for maximum accuracy

Delivery
1x SK40 or SK50 transverse drive shell end mill arbour (DIN 2080); with retaining screw


Brand: ATORN
Tool holding device: SK 40
Mandrel diameter (d1): 16 mm
Tap length (L): 17 mm
Collar diameter (D): 63 mm
Projecting length (A): 30 mm
DIN: 2080

ATORN-No.: 22661302

EAN no.: 4050293714814

Product Datasheet
